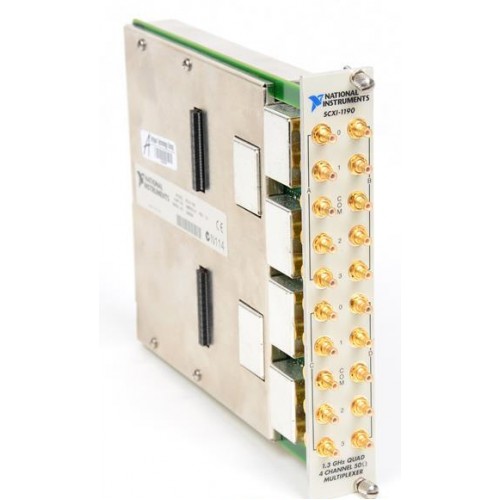

The National Instruments SCXI-1190 is a 1.3 GHz, 50 Ω RF switch module with four 4×1 multiplexers for SCXI systems.
Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.
Key product information and technical features.
The SCXI-1190 provides four 4-to-1 switching groups rather than a single 16-to-1 multiplexer. It belongs to NI's SCXI switching platform.
Do not confuse it with the SCXI-1192: that model uses eight SPDT relays and has different RF ratings.
Verified product specifications.
| Configuration | Quad 4×1 multiplexer |
|---|---|
| Rated bandwidth | 1.3 GHz |
| Nominal characteristic impedance | 50 Ω |
| Insertion loss at ≤1.3 GHz | <1.5"},{"evidence_ids":["EV-BULK-7612-AD37067F90"],"label":"VSWR at ≤1.3 GHz","status":"VERIFIED","unit":"—","value":"50 dB |
| Maximum switching voltage, channel-to-channel and channel-to-ground | 24; DC, ACrms or combination V |
| Maximum switching current per channel | 1 A |
| Maximum RF carry power per channel | 10, up to 900 MHz W |
| I/O connectors | 20 SMB jacks |
| Operating temperature | 0 to 50 °C |
Confirm condition, included accessories and revision before ordering.
Confirmed per unit.
Device / accessories confirmed in quote.
Exact revision confirmed when relevant.
Review system components and compatibility requirements.
Manufacturer
Modular switching platform
Quad 4×1 RF multiplexer
NI-SWITCH 1.6 lists SCXI-1190 as supported hardware; this is historical support evidence.
Manuals, software and technical resources for this model.
Review shipping, warranty and return terms before ordering.
Choose pricing, rental or repair for this exact model.
Product-specific answers based on available technical information.
No. Its specified topology is quad 4×1: four separate 4-to-1 multiplexer groups.
NI recommends against this: momentary unterminated paths can cause reflections that damage some RF sources.
Yes. NI-SWITCH 1.6 lists it as supported hardware. Confirm the appropriate driver and operating-system combination for your installation.
