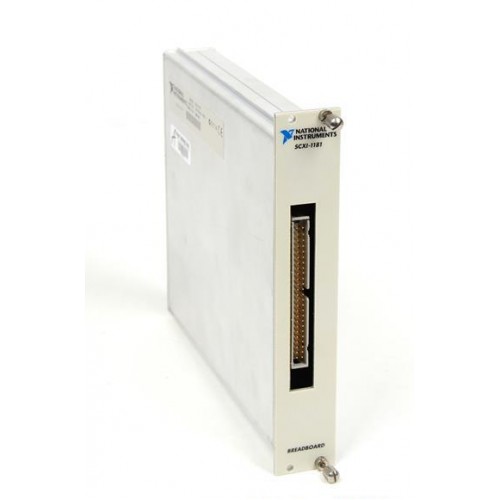

National Instruments SCXI-1181 General-purpose breadboard module
1 image: Click to enlarge
National Instruments · SCXI

SCXI-1181

The NI SCXI-1181 is a general-purpose breadboard module for custom analog, digital, and timing circuits in SCXI systems. It provides a breadboarding area and power-supply circuit layout for user-built signal conditioning.

ManufacturerNational Instruments
ModelSCXI-1181
Part Number776572-81
Product TypeGeneral-purpose breadboard module
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: SCXI-1181

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
PlatformSCXI
Circuit constructionPerforated board for soldered custom circuits
Front connection96-pin DIN C-type
Rear signal connection50-pin right-angle male ribbon-cable connector
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The SCXI-1181 provides a way to develop custom signal conditioning within an SCXI chassis. User-built circuitry is soldered onto the breadboard and enclosed within the noise-protected chassis.

NI identifies the module as suitable for prototyping and low-volume custom SCXI module development, including analog, digital, and timing circuits.

  • Breadboarding area supports custom soldered signal-conditioning circuits.
  • Power-supply layout accommodates positive and negative adjustable voltage regulators.
  • Numbered breadboard pads provide connections to front, rear, and SCXIbus connectors.
Verified specifications

Technical data

Verified product specifications.

Manufacturer kit part number776572-81
Front connector96-pin DIN C-type
Rear signal connector50-pin right-angle male ribbon-cable
Breadboarding surfacePerforated board
Module shieldingFully shielded
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

SCXI

Chassis-based platform

SCXI-1181

Custom-circuit breadboard module

Bus access

Provides access to SCXIbus signal lines.

The power-supply section is a circuit layout for user-installed components; do not assume a completed regulator circuit is present.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

NI SCXI-1181 Product PageOfficial Product Page · ni.com
Open →
SCXI-1180/1181 User ManualUser Manual · download.ni.com
Open →
SCXI-1181 Dimensional DrawingsDimensional Drawing Resource · ni.com
Open →
Circuit construction, connector pinouts, and power-supply layout: SCXI-1180/1181 User Manual, Chapter 3Technical resource
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

SCXI

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

What is the SCXI-1181 used for?

It supports custom analog, digital, and timing circuit development, including prototyping and low-volume custom SCXI modules.

Is the breadboarding area solderless?

No. NI describes a perforated board for soldering custom circuitry.

Does the power-supply layout mean the regulators are already installed?

No. The manual describes installing regulator components into the provided layout. Inspect the actual module to determine its installed circuitry.
