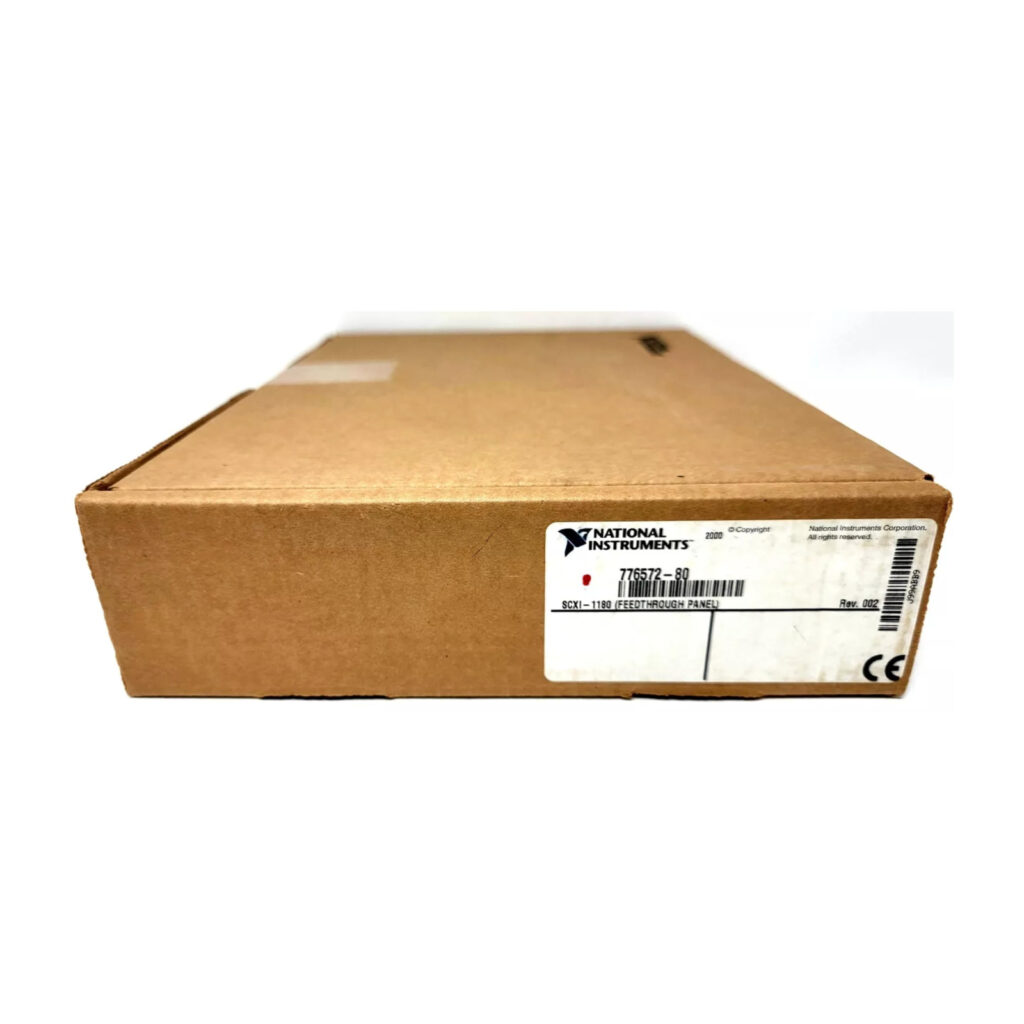

The National Instruments SCXI-1180 extends unconditioned signal lines from the rear to the front of an SCXI chassis.
Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.
Key product information and technical features.
A front panel and ribbon-cable assembly provide signal access without conditioning.
Verified product specifications.
| Connection pin count | 50 pins |
|---|---|
| Panel part number | 181710-01 |
| Kit part number | 776572-80 |
Confirm condition, included accessories and revision before ordering.
Confirmed per unit.
Device / accessories confirmed in quote.
Exact revision confirmed when relevant.
Review system components and compatibility requirements.
Manufacturer
Chassis platform
Feedthrough panel
NI specifies the SCXI-1180 for the adapter's 50-pin breakout connector.
Manuals, software and technical resources for this model.
Review shipping, warranty and return terms before ordering.
Choose pricing, rental or repair for this exact model.
Product-specific answers based on available technical information.
No. It extends signals that do not require conditioning.
The SCXI-1302 provides 50 screw terminals.
Yes. NI describes using its 50-pin breakout with the SCXI-1180 to access differential analog channels 1 through 7 on the MIO device. Verify the documented pin mapping.
