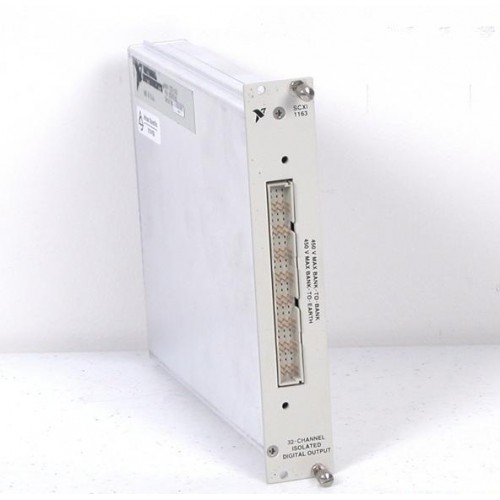

The National Instruments SCXI-1163 provides 32 optically isolated TTL/CMOS digital output channels for SCXI systems.
Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.
Key product information and technical features.
The SCXI-1163 sends digital logic signals while providing optical isolation to address grounding problems and isolate the host computer from harmful voltages.
NI documents parallel operation with DIO-24, DIO-96, or DIO-32F devices, alongside multiplexed operation with DAQ devices supporting SCXI.
Verified product specifications.
| Channel count | 32 channels |
|---|---|
| Signal direction | Output |
| Logic type | TTL/CMOS |
| Isolation technology | Optical |
| Manufacturer part number | 776572-63 |
Confirm condition, included accessories and revision before ordering.
Confirmed per unit.
Device / accessories confirmed in quote.
Exact revision confirmed when relevant.
Review system components and compatibility requirements.
Manufacturer
Modular platform
Isolated digital output module
NI's archived hardware reference identifies DIO-24, DIO-96, and DIO-32F devices.
Manuals, software and technical resources for this model.
Review shipping, warranty and return terms before ordering.
Choose pricing, rental or repair for this exact model.
Product-specific answers based on available technical information.
It is a 32-channel digital output module. NI's hardware reference explicitly identifies the SCXI-1163 as an optically isolated output device.
It supports serial programming through the SCXIbus and parallel operation when directly cabled to a suitable digital I/O device.
No. NI distinguishes the SCXI-1163 digital outputs from the SCXI-1163R, which incorporates solid-state relays instead.
