National Instruments · SCXI

SCXI-1143

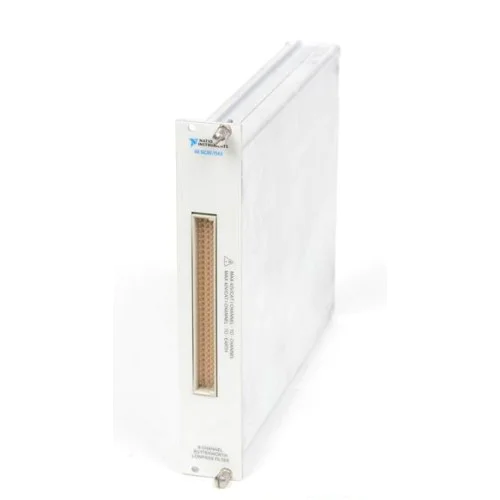

The National Instruments SCXI-1143 is an 8-channel Butterworth low-pass filter module for SCXI signal-conditioning systems. NI documents its use as a filtering stage in selected cascaded data acquisition configurations.

ManufacturerNational Instruments

ModelSCXI-1143

Part Number776572-43

Product Type8-channel Butterworth low-pass filter module

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: SCXI-1143

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Channels8

Filter responseButterworth low-pass

PlatformSCXI signal conditioning

Manufacturer part number776572-43
