SCXI-1142

Name: SCXI-1142
Brand: National Instruments

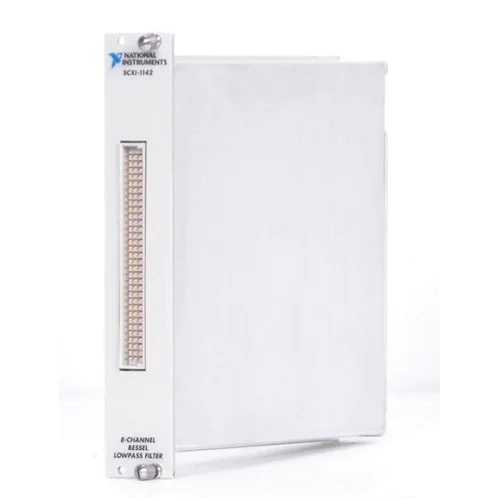

The National Instruments SCXI-1142 is an 8-channel programmable Bessel low-pass filter module for SCXI signal-conditioning systems. It supports anti-aliasing applications with a common cutoff-frequency setting and individually selectable filter bypass.

ManufacturerNational Instruments

ModelSCXI-1142

Part Number776572-42

Product Type8-channel programmable Bessel low-pass filter module

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: SCXI-1142

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

PlatformSCXI

Channels8

Filter responseBessel low-pass

Software-selectable cutoff10 Hz to 25 kHz

Filter bypassProgrammable per channel

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The SCXI-1142 provides Bessel low-pass filtering for eight signal channels. NI identifies it as a programmable filter module for anti-aliasing applications; its filter response is model-specific rather than a selectable choice among Bessel, elliptic, and Butterworth responses.

All channels share the same cutoff-frequency setting, while filter bypass is controlled separately for each channel. External clock input and output support cutoff-frequency control in tracking-filter applications.

Eight channels of Bessel low-pass filtering.
Software-selectable cutoff frequencies from 10 Hz to 25 kHz.
Per-channel programmable filter bypass despite a shared cutoff-frequency setting.
External clock input and output for tracking-filter operation.

Verified specifications

Technical data

Verified product specifications.

Channel count	8 channels
Filter type	Bessel low-pass
Software-selectable cutoff-frequency range	10 Hz to 25 kHz
Cutoff-frequency configuration	Common setting for all channels
Filter bypass	Software-programmable per channel
External filter clock	Input and output provided

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

SCXI

Signal-conditioning platform

SCXI-1142

8-channel Bessel low-pass filter module

Signal connection accessory

NI documents use of the SCXI-1305 AC/DC coupling BNC terminal block with the SCXI-1142.

Select system hardware for the SCXI platform; the catalog's PXI category alone is not evidence of direct PXI-slot compatibility.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

NI SCXI-1142 Official Product PageProduct Page · ni.com

Open →

LabVIEW Data Acquisition Basics Manual — SCXI FilteringArchived Platform Manual · download.ni.com

Open →

SCXI-1305 AC/DC Coupling BNC Terminal Block Installation Guide and SpecificationsAccessory Installation Guide · docs-be.ni.com

Open →

NI-DAQmx 18.5 ReadmeDriver Support Documentation · download.ni.com

Open →

NI Cascading SCXI Modules — Configuration and Driver ConsiderationsTechnical resource

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Which filter response does the SCXI-1142 provide?

The SCXI-1142 provides a Bessel low-pass response. The family-level description should not be interpreted as offering selectable Bessel, elliptic, and Butterworth responses on this model.

Can each channel use a different cutoff frequency?

No. All channels must use the same cutoff-frequency setting, but the low-pass filter can be bypassed independently on each channel.

What cutoff-frequency range is software selectable?

NI documents a software-selectable cutoff-frequency range of 10 Hz to 25 kHz for the SCXI-1142.

Which BNC terminal block is documented for this module?

The SCXI-1305 installation guide explicitly covers use with the SCXI-1142, including channel connections and clock-connector configuration.
