NI (National Instruments) · Computer-Based Device

SCXI-1130

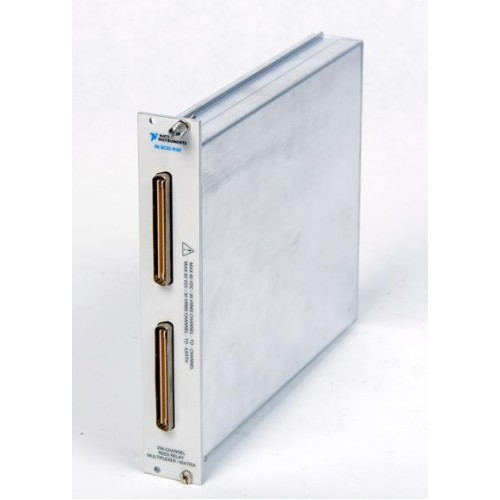

The NI SCXI-1130 is a high-density, 256-channel reed matrix/multiplexer switch module for SCXI. Its listed NI part number is 778661-01.

ManufacturerNI (National Instruments)

ModelSCXI-1130

Part Number778661-01

Product Type256-Channel Reed Matrix/Multiplexer Switch Module for SCXI

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: SCXI-1130

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Supported Hardware PlatformComputer-Based Device

Row AccessYes

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The SCXI-1130 is a high-density, multiconfiguration switch module in the NI SCXI family. It provides reed-based matrix and multiplexer switching for systems with large or complex channel counts.

The supplied product data identifies four multiplexer and three matrix configurations. With appropriate SCXI terminal blocks, multiplexer arrangements include 256×1 (1-wire), 128×1 (2-wire), 64×1 (4-wire), or 16 banks of 16×1 (1-wire). Terminal-block selection must match the intended configuration.

256-channel reed matrix/multiplexer switching architecture.
High-density, multiconfiguration design for the SCXI platform.
Multiplexer options include 1-wire, 2-wire, and 4-wire arrangements with appropriate SCXI terminal blocks.
Row access is supported.

Verified specifications

Technical data

Verified product specifications.

Supported Hardware Platform	Computer-Based Device
Row Access	Yes
NI part numbers	778661-01
