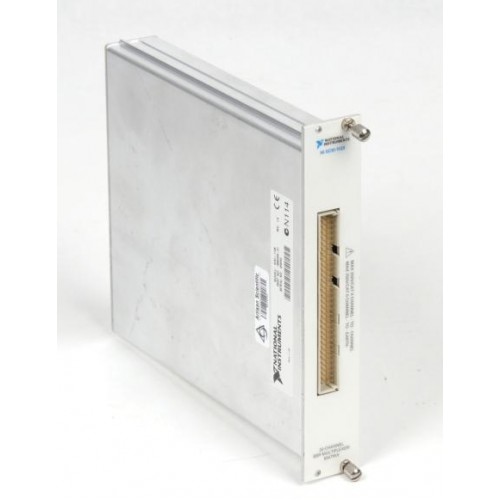

National Instruments SCXI-1128 product image 1
National Instruments SCXI-1128 product image 1 additional viewNational Instruments SCXI-1128 product image 1 additional viewNational Instruments SCXI-1128 product image 1 additional view
4 images: additional views below.Click to enlarge
National Instruments · SCXI

SCXI-1128

The National Instruments SCXI-1128 is a 32-channel solid-state relay multiplexer/matrix switch module for the SCXI platform. NI documents its use in scanning systems and high-voltage signal routing through suitable SCXI backplanes.

ManufacturerNational Instruments
ModelSCXI-1128
Part Number776572-28
Product TypeSolid-state relay multiplexer/matrix switch module
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: SCXI-1128

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Switching technologySolid-state relay (SSR)
NI channel designation32-channel multiplexer/matrix
PlatformSCXI
Manufacturer part number776572-28
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The SCXI-1128 provides solid-state relay switching in a multiplexer/matrix module. NI identifies it as a 32-channel SSR device in its supported-hardware documentation.

In a suitable SCXI switching system, the SCXI-1128 can use high-voltage backplanes to share signals among connected switches and route signals to a digital multimeter. NI's scanning guidance identifies its trigger-input and scanner-advanced signal paths; multimodule operation depends on the complete hardware setup.

  • Solid-state relay switching for multiplexer/matrix routing.
  • Documented trigger input through SCXI trigger line 0 or front and rear connections.
  • Scanner-advanced output through SCXI trigger line 2 or the front connection.
  • Listed among supported devices in the NI-SWITCH 15.0.0 readme.
Verified specifications

Technical data

Verified product specifications.

Switching technologySolid-state relay
Channel designation32 channels
Switch functionMultiplexer/matrix
Trigger input pathsSCXI trigger line 0; front; rear
Scanner-advanced output pathsSCXI trigger line 2; front
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

SCXI

Modular hardware platform

SCXI-1128

Solid-state relay multiplexer/matrix module

Software reference

NI-SWITCH 15.0.0 lists the SCXI-1128 as supported hardware.

Confirm the chassis, backplane, connections, signal limits, and driver version for the intended configuration before integration.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

Multimodule Scanning with NI SwitchesApplication And Integration Guidance · ni.com
Open →
NI-SWITCH 15.0.0 ReadmeSoftware Support Reference · ni.com
Open →
NI-DAQmx 8.1 ReadmeHardware Identification And Software Support Reference · download.ni.com
Open →
NI switching-system scanning and trigger guidanceTechnical resource
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

SCXI

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

What type of switching module is the SCXI-1128?

NI identifies the SCXI-1128 as a 32-channel solid-state relay multiplexer/matrix module.

What manufacturer part number identifies the SCXI-1128?

NI associates part number 776572-28 with the SCXI-1128 32-channel SSR multiplexer.

Can the SCXI-1128 participate in instrument scanning?

NI documents trigger-input and scanner-advanced paths for the SCXI-1128. Multimodule scanning depends on switch capabilities, chassis capabilities, and the scanning mode of the complete system.
