SCXI-1127

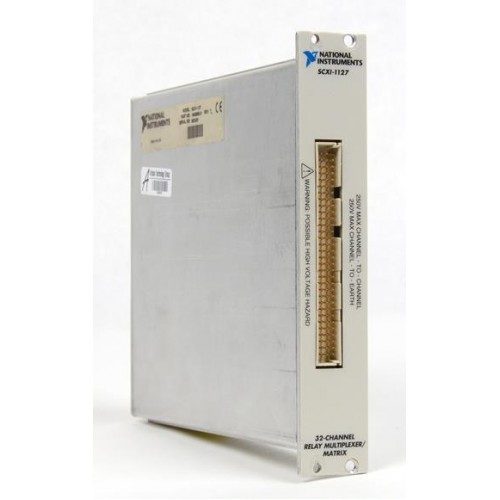

1 image: Click to enlarge
NI (National Instruments) · Computer-Based Device

SCXI-1127

The NI SCXI-1127 is a high-voltage electromechanical relay module for multiplexer or matrix switching in SCXI systems. Listed under NI part number 776572-27, its switching configuration depends on the front-mounting terminal block.

ManufacturerNI (National Instruments)
ModelSCXI-1127
Part Number776572-27
Product Type32-Channel, Electromechanical Relay Matrix/Multiplexer Switch Module for SCXI
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: SCXI-1127

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Supported Hardware PlatformComputer-Based Device
Row AccessYes
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The SCXI-1127 is a high-voltage armature relay module that can act as a multiplexer or matrix switch. It provides signal routing within an SCXI-based measurement system.

Multiplexer operation includes 1-wire configurations for large-channel-count systems, 2-wire configurations for differential pairs, and 3- or 4-wire modes for resistive measurements such as RTDs and thermistors.

With the appropriate SCXI front-mounting terminal block, the module can be configured as a 64 × 1 1-wire multiplexer, 32 × 1 2-wire multiplexer, 16 × 1 4-wire multiplexer, or 4 × 8 2-wire matrix.

  • Electromechanical armature relay switching for multiplexer or matrix operation.
  • Front-mounting terminal blocks determine the switching configuration.
  • Multiplexer modes accommodate single-wire, differential-pair and resistive measurement routing.
  • Row access is supported.
Verified specifications

Technical data

Verified product specifications.

Supported Hardware PlatformComputer-Based Device
Row AccessYes
NI part numbers776572-27
