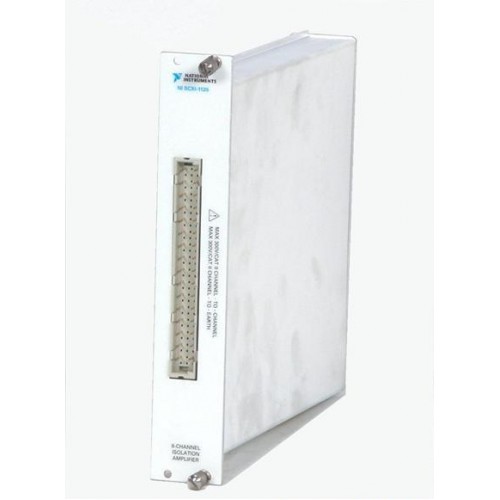

1 image: Click to enlarge

National Instruments · SCXI

SCXI-1125

The National Instruments SCXI-1125 is an eight-channel isolated signal conditioning module for SCXI systems, with software-selectable gain and filtering.

ManufacturerNational Instruments

ModelSCXI-1125

Part Number776572-25

Product Type8-channel isolated analog input signal conditioning module

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: SCXI-1125

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Inputs8 differential channels

Gain12 programmable settings, 1 to 2000

Lowpass filtering4 Hz or 10 kHz per channel

Working isolation300 Vrms

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

Designed for conditioning and isolation of thermocouple, millivolt, voltage and current signals, the SCXI-1125 multiplexes its channels into a single input of a controlling DAQ device.

The module's native input ranges extend from ±2.5 mV to ±5 V. Higher-voltage measurements require an appropriate attenuating terminal block; ±300 V is not the native input range.

Jumperless configuration of channel gain and filters.
Individually configurable lowpass filters for each input channel.
Multiplexed and parallel operating modes.

Verified specifications

Technical data

Verified product specifications.

Differential input channels	8 channels
Native input ranges	±2.5 mV to ±5 V
Programmable gain settings	1, 2, 5, 10, 20, 50, 100, 200, 250, 500, 1000, 2000 V/V
Selectable lowpass filter	4 Hz or 10 kHz
Working isolation	300 Vrms

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

SCXI

Signal conditioning platform

SCXI-1125

Isolated analog input conditioning

System integration

Requires an SCXI system and controlling DAQ device.

Select the terminal block for the required voltage range and measurement category; isolation voltage is not the native signal range.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

SCXI-1125 User Manual and SpecificationsUser Manual And Specifications · download.ni.com

Open →

NI SCXI-1125 Product PageManufacturer Product Page · ni.com

Open →

SCXI-1313A Terminal Block Installation Guide and SpecificationsAccessory Installation Guide · download.ni.com

Open →

NI-DAQmx 18.0 Readme — Supported HardwareTechnical resource

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

SCXI

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Can the SCXI-1125 measure ±300 V directly?

No. Native ranges reach ±5 V. The manual specifies ±300 V operation with the SCXI-1327 attenuating terminal block, subject to its connection and safety requirements.

Is NI-DAQmx support documented?

NI lists the SCXI-1125 in the NI-DAQmx 18.0 supported modules. This establishes support for that release, not universal compatibility with later drivers or operating systems.
