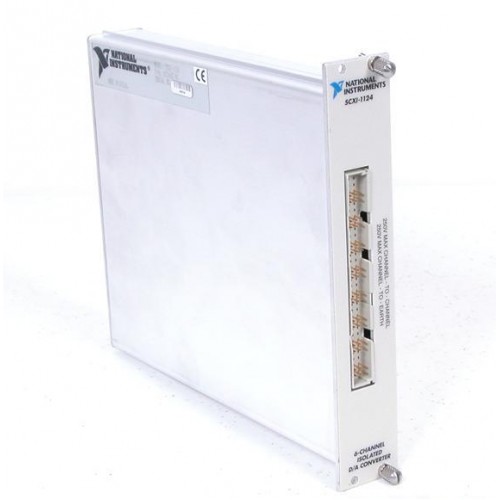

National Instruments SCXI-1124 product image 1

National Instruments SCXI-1124 product image 1 additional view

4 images: additional views below.Click to enlarge

National Instruments · SCXI

SCXI-1124

The National Instruments SCXI-1124 provides six isolated analog output channels for low-bandwidth DC voltage or current signals. Each channel can be configured independently, and the module is controlled digitally through the SCXI bus.

ManufacturerNational Instruments

ModelSCXI-1124

Part Number776572-24

Product TypeSix-channel isolated analog output module

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: SCXI-1124

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Output channels6 isolated channels

Signal typesDC voltage or current

ConfigurationIndependent per-channel output configuration

Voltage-mode driveSource or sink up to 5 mA per channel

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

Designed for process-control outputs, the SCXI-1124 supplies isolated DC signals within an SCXI signal-conditioning system. Its voltage-output configuration supports unipolar and bipolar ranges.

Six independently isolated voltage/current output channels.
Software-configurable output settings.
Onboard EEPROM stores calibration constants.
Digital SCXI-bus control allows one multifunction I/O device to control multiple SCXI-1124 modules.

Verified specifications

Technical data

Verified product specifications.

Analog output channels	6 channels
Output signal types	Low-bandwidth DC voltage or current
Bipolar voltage output capability per channel	±10 V
Voltage-mode source/sink current capability	5 mA
Series-connected output capability per module	Up to ±60 V with channels connected in series

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

SCXI

Signal-conditioning platform and digital control bus

SCXI-1124

Isolated analog output module

System expansion

Multiple SCXI-1124 modules can operate in an SCXI system alongside other signal-conditioning I/O modules.

Verify the complete chassis, DAQ interface, terminal-block, and driver configuration before integration.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

SCXI-1124 Official Product OverviewManufacturer Product Page · ni.com

Open →

TBX-1325 High-Voltage Terminal Block Installation Guide and SpecificationsInstallation Guide · download.ni.com

Open →

NI-DAQmx 17.1 ReadmeDriver Support Reference · download.ni.com

Open →

NI Technical Newsletter: Series-Connected SCXI-1124 OutputsTechnical resource

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Alternatives & system components

Explore equipment

SCXI

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Does the SCXI-1124 provide voltage outputs, current outputs, or both?

Both. Each isolated DAC channel can be configured independently for DC voltage or current output.

Can SCXI-1124 channels be connected in series?

Yes. NI documents series-connected channels for output voltages up to ±60 V per module. The voltage-mode current capability remains 5 mA; connecting channels in series does not increase it. Follow the applicable wiring and safety documentation.

Is the SCXI-1124 listed in NI-DAQmx support documentation?

Yes. The NI-DAQmx 17.1 readme lists the SCXI-1124 among supported SCXI modules. This is version-specific evidence, not a claim of support in every driver release or operating system.
