National Instruments · SCXI

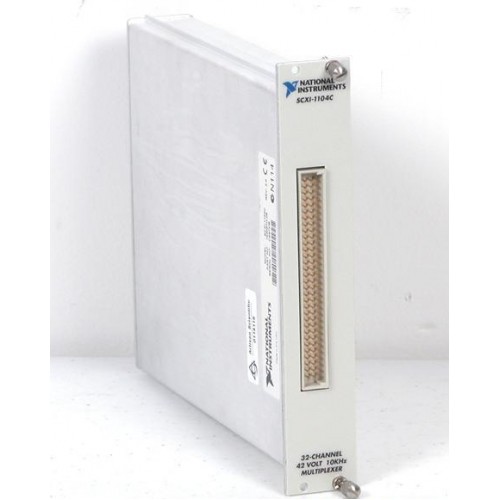

SCXI-1104C

Name: SCXI-1104C
Brand: National Instruments

The NI SCXI-1104C is a 32-channel voltage input module for SCXI, with a ±60 VDC range and 10 kHz filtering.

ManufacturerNational Instruments

ModelSCXI-1104C

Part Number776572-04C

Product TypeMedium-voltage input module

● Contact for Availability

Condition: confirmed per unit

Choose the outcome

Get Price & Availability Rent This Model Repair This Model

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Inputs32 differential channels

DC range±60 VDC

Filter cutoff10 kHz

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Future AI receives the current page context and escalates uncertain price, stock, compatibility or service claims to a person.

Ask SOHO Assistant

Overview

Technical description without filler

Core content remains expanded and crawlable.

Designed for higher-voltage signal conditioning, the SCXI-1104C multiplexes its channels into one input of a controlling DAQ device to expand system channel count.

Three-pole lowpass filter on each channel.
Fixed gain of 0.1.
Multiplexed output to the controlling DAQ device.

Verified specifications

Technical data

Only supported values belong in the table and schema.

Input channels	32 differential —
DC input range	±60 VDC
AC signal range	30 Vrms; ±42 V peak —
Filter cutoff (−3 dB)	10 kHz
Gain	0.1, fixed V/V
Operating temperature	0 to 50 °C

Condition & included items

What the actual unit includes

Critical for used and surplus equipment.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Internal links mirror real engineering relationships.

National Instruments

Manufacturer

SCXI

Signal-conditioning platform

SCXI-1104C

Voltage input module

Compatibility

Documented signal-connection accessories: SCXI-1300, BNC-2095, TBX-96 and SCXI-1310.

Confirm chassis, DAQ device, cabling and driver requirements before system integration.

Manuals & software

Technical resources

Documents are visible without loading a heavy PDF viewer.

NI SCXI-1104C Product PageProduct Page · ni.com

Open →

SCXI-1104/C User Manual, February 2000User Manual And Specifications · download.ni.com

Open →

SCXI-1104/C Installation, Pinouts and SpecificationsTechnical resource

Open →

Shipping, warranty & returns

Commercial terms

Short product-page summaries link to the complete policy.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Keep commercial paths attached to the same technical context.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

FAQ

Product-specific questions

Only questions supported by structured product data are shown.

How does the SCXI-1104C differ from the SCXI-1104?

The SCXI-1104C has a 10 kHz filter cutoff; the SCXI-1104 has a 2 Hz cutoff.

Is it intended for thermocouple measurements?

No. NI identifies it as optimized for medium-voltage rather than millivolt measurements.
