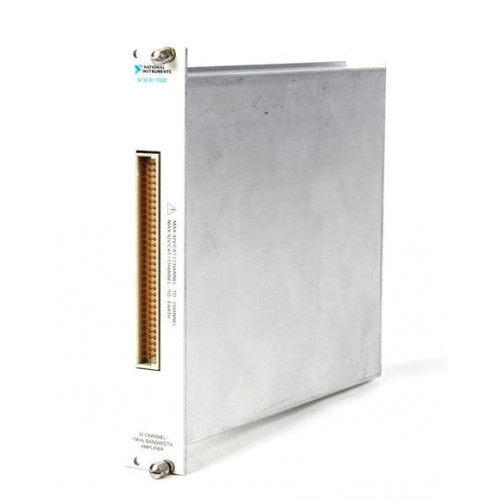

National Instruments SCXI-1102C product image 1
National Instruments SCXI-1102C product image 1 additional viewNational Instruments SCXI-1102C product image 1 additional viewNational Instruments SCXI-1102C product image 1 additional viewNational Instruments SCXI-1102C product image 1 additional view
5 images: additional views below.Click to enlarge
National Instruments · SCXI

SCXI-1102C

The National Instruments SCXI-1102C is a 32-channel SCXI voltage input module for conditioning thermocouple, millivolt, voltage, and current signals. It provides 10 kHz lowpass filtering.

ManufacturerNational Instruments
ModelSCXI-1102C
Part Number776572-02C
Product TypeVoltage input signal conditioning module
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: SCXI-1102C

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Inputs32 differential channels
Filter10 kHz lowpass
Gain1 or 100, selectable per channel
NI part number776572-02C
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The SCXI-1102C conditions sensor signals before acquisition by a controlling DAQ device. Its channels can be multiplexed onto a single DAQ input to expand system channel count.

  • Three-pole lowpass filter on each input.
  • Individual channel amplification with software-selectable gain.
  • Multiplexed output to the controlling DAQ device.
Verified specifications

Technical data

Verified product specifications.

Analog inputs32 differential channels
Input range at gain 1±10 V
Input range at gain 100±100 mV
Lowpass cutoff frequency, −3 dB10 kHz
Operating temperature0 to 50 °C
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

SCXI

Signal conditioning platform

SCXI-1102C

Voltage input module

System requirements

SCXI chassis or PXI/SCXI combination chassis, terminal block, and supported acquisition hardware.

This is a signal conditioning module, not a standalone digitizer.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

SCXI-1102/B/C User ManualUser Manual · download.ni.com
Open →
NI SCXI-1102C Product PageOfficial Product Page · ni.com
Open →
Signal connections, configuration, and specificationsTechnical resource
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

SCXI

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

How does the SCXI-1102C differ from the SCXI-1102B?

The C model has a 10 kHz lowpass cutoff; the B model has a 200 Hz cutoff.

Is 333 kS/s a per-channel acquisition rate?

No. The manual identifies 333 kHz as the maximum aggregate multiplexing rate, subject to DAQ hardware, scan sequence, and accuracy requirements.
