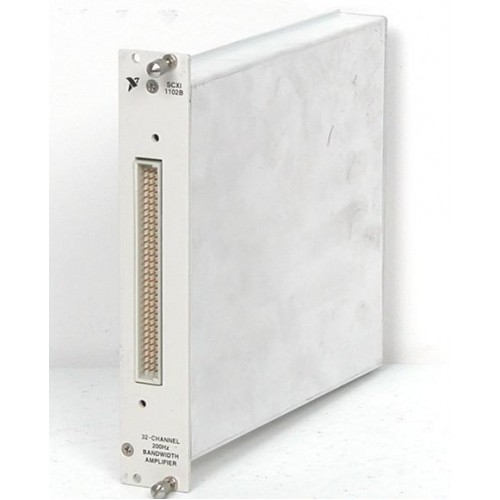

National Instruments SCXI-1102B product image 1
National Instruments SCXI-1102B product image 1 additional viewNational Instruments SCXI-1102B product image 1 additional viewNational Instruments SCXI-1102B product image 1 additional view
4 images: additional views below.Click to enlarge
National Instruments · SCXI

SCXI-1102B

The NI SCXI-1102B conditions thermocouple, millivolt, voltage, and current signals for an SCXI measurement system. It provides 32 input channels and 200 Hz filtering.

ManufacturerNational Instruments
ModelSCXI-1102B
Part Number776572-02B
Product TypeVoltage input signal-conditioning module
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: SCXI-1102B

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Inputs32 differential channels
Filter200 Hz lowpass
Gain1 or 100
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

Channels are multiplexed to one channel of the controlling DAQ device, expanding the system's input count.

  • Three-pole lowpass filtering on each channel.
  • Software-selectable amplification.
  • Dedicated cold-junction sensor input.
Verified specifications

Technical data

Verified product specifications.

Analog input channels32 differential
Filter cutoff200 Hz
Selectable gain1 or 100 V/V
Input range at gain 1±10 V
Input range at gain 100±100 mV
Maximum aggregate multiplexing rate333; dependent on DAQ device and scan configuration kS/s
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

SCXI

Signal-conditioning platform

SCXI-1102B

Analog input conditioning

Compatibility

NI-DAQmx 17.5 lists SCXI-1102B/C support. Verify the complete driver, operating-system, and DAQ-device combination before integration.
