National Instruments · SCXI

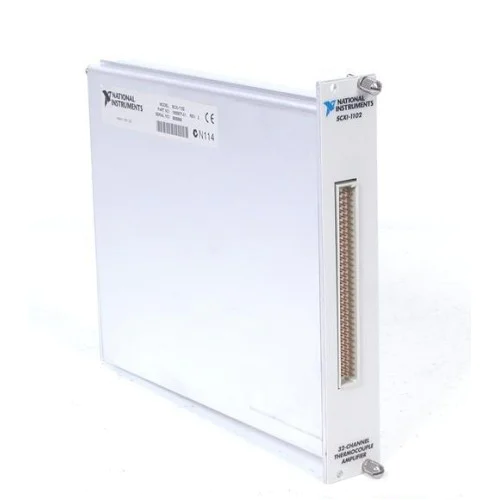

SCXI-1102

Name: SCXI-1102
Brand: National Instruments

The National Instruments SCXI-1102 conditions thermocouple, millivolt, voltage and current signals in SCXI systems. Its 32 channels are multiplexed to one controlling DAQ device channel.

ManufacturerNational Instruments

ModelSCXI-1102

Part Number776572-02

Product Type32-channel thermocouple amplifier and voltage input module

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: SCXI-1102

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Inputs32 differential analog channels

Filter2 Hz lowpass per channel

GainSoftware-selectable 1 or 100

Voltage input±10 V

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The SCXI-1102 provides amplification and filtering for temperature and low-bandwidth voltage measurements. Multiplexing its channels into one DAQ input supports higher channel counts without requiring a separate digitizer input for every signal.

This record identifies the base SCXI-1102 with a 2 Hz filter, not the SCXI-1102B or SCXI-1102C variants.

Individual channel amplifiers with programmable gain.
Fixed 2 Hz filtering for low-bandwidth signals.
Scannable cold-junction sensor channel.

Verified specifications

Technical data

Verified product specifications.

Analog input channels	32 differential
Selectable gain	1 or 100 V/V
Filter cutoff frequency	2 Hz
Filter topology	Two-pole lowpass
Voltage input range	±10 V

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

SCXI

Signal conditioning platform

SCXI-1102

Multiplexed analog input conditioning

System hardware

Requires an SCXI chassis or SCXI section of a PXI/SCXI combination chassis, suitable DAQ hardware and signal connections.

SCXI module, not a standard PXI-slot module. Verify chassis, cabling and legacy driver support before integration.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

SCXI-1102/B/C User ManualUser Manual · download.ni.com

Open →

NI SCXI-1102 Product PageOfficial Product Page · ni.com

Open →

How to Use Cold Junction Compensation with SCXI ModulesTechnical resource

Open →

Archived NI-DAQmx and NI-DAQ Driver Support: SCXITechnical resource

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Where is the cold-junction compensation sensor located?

The sensor is located on a suitable terminal block, such as the SCXI-1300 or SCXI-1303. The module reads it through its cold-junction sensor channel.

Can cold-junction compensation be scanned with the analog inputs?

Yes. The SCXI-1102 supports scanning its cold-junction sensor alongside other analog input channels.

Does the archived driver table establish compatibility with current operating systems?

No. NI marks that table as archived and not actively maintained. Check the intended driver release and operating system together rather than treating historical support as current compatibility.
