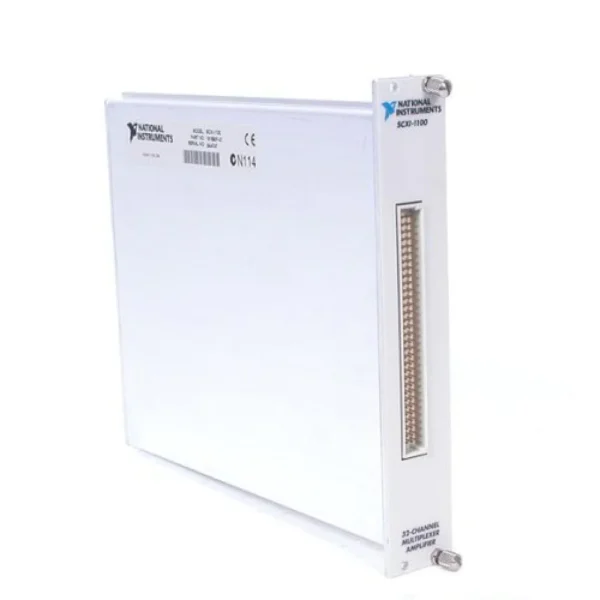

SCXI-1100

The NI SCXI-1100 conditions millivolt, volt, and current signals through 32 multiplexed input channels. Its output feeds a single channel of a controlling DAQ device.

ManufacturerNational Instruments
ModelSCXI-1100
Part Number776572-00
Product Type32-channel analog input signal conditioning module
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: SCXI-1100

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Channel count32 analog inputs
PlatformSCXI
Signal typesMillivolt, volt, and current signals
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The SCXI-1100 expands DAQ channel count by multiplexing multiple signal inputs into one DAQ input. It is a signal conditioning module within an SCXI measurement system, rather than a standalone acquisition device.

  • 32 differential analog input channels.
  • Shared software-programmable gain instrumentation amplifier.
  • Jumper-selectable 4 Hz and 10 kHz lowpass filters.
Verified specifications

Technical data

Verified product specifications.

Analog input channels32 differential
Software-selectable gains1, 2, 5, 10, 20, 50, 100, 200, 1000, 2000 V/V
Lowpass filter frequencies4 Hz and 10 kHz; jumper selectable
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

SCXI

Signal conditioning platform

SCXI-1100

Multiplexed analog input module

DAQ connection

Multiplexed channels feed a single controlling DAQ input.

Allow settling time appropriate to the selected gain and filter configuration.
