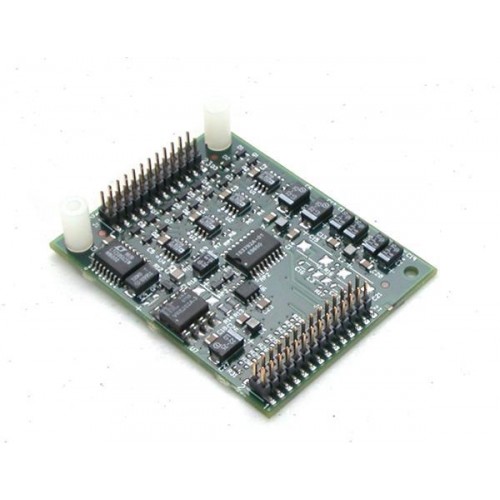

SCMP-10UA

National Instruments VXI-SC-1000 Carrier Module
Features

• Single Slot, C-Size VXI Module
• VXI-SC-1000 Carrier Module
• VXI Interface for (2) Submodules

VXI-SC-1000 Carrier Module
The VXI-SC-1000 carrier module provides a VXI interface and serial peripheral interface for two separate VXI signal conditioning submodules. The VXI-SC-1000 carrier module and the associated VXI-signal conditioning (VXI-SC) submodules can condition signals for thermocouples, RTDs, strain gauges, thermistors, millivolt sources, volt sources, and current-loop receivers.

VXI-SC-1102 32-Channel Multiplexer Amplifier Module
The VXI-SC-1102 is a submodule for the signal conditioning of thermocouples, low-bandwidth volt and millivolt sources, 4 to 20 mA current sources, and 0 to 20 mA process-current sources. The VXI-SC-1102 has 32 differential analog input channels and one cold-junction sensor channel. On each channel, the VXI-SC-1102 has a three-pole lowpass filter with a 2 Hz cutoff frequency to reject 60 Hz noise. Each channel also has an amplifier with a selectable gain of 1 or 100. You can multiplex the VXI-SC-1102 inputs to a single output, which drives a single VXI-MIO board channel.

VXI-SC-1102B 32-Channel Multiplexer Amplifier Module
The VXI-SC-1102 is a submodule for the signal conditioning of thermocouples, medium-bandwidth volt and millivolt sources, 4 to 20 mA current sources, and 0 to 20 mA process-current sources. The VXI-SC-1102B has 32 differential analog input channels and one cold-junction sensor channel. On each channel, the VXI-SC-1102B has a three-pole lowpass filter with a 200 Hz cutoff frequency. Each channel also has an amplifier with a selectable gain of 1 or 100. You can multiplex the VXI-SC-1102B inputs to a single output, which drives a single VXI-MIO board channel.

VXI-SC-1102C 32-Channel Multiplexer Amplifier Module
The VXI-SC-1102C is a submodule for the signal conditioning of thermocouples, High-bandwidth volt and millivolt sources, 4 to 20 mA current sources, and 0 to 20 mA process-current sources. The VXI-SC-1102C has 32 differential analog input channels and one cold-junction sensor channel. On each channel, the VXI-SC-1102C has a three-pole lowpass filter with a 10 kHz cutoff frequency. Each channel also has an amplifier with a selectable gain of 1 or 100. You can multiplex the VXI-SC-1102C inputs to a single output, which drives a single VXI-MIO board channel.

VXI-SC-1150 & SCMP Modules
The VXI-SC-1150 is a submodule that connects to a VXIbus chassis via the VXI-SC-1000 carrier module. The SCMPs are modular boards that can plug on a VXI-SC-1150 submodule to provide various signal conditioning functions.
