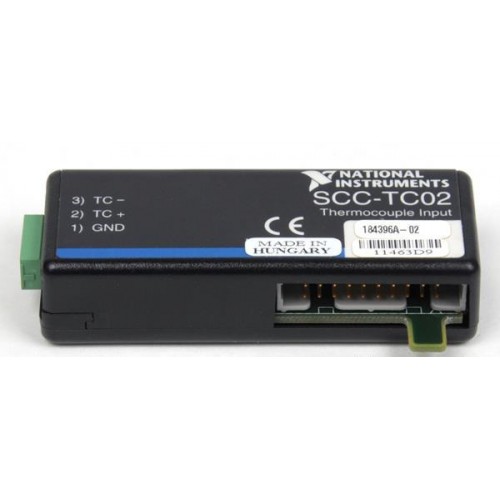

National Instruments SCC-TC02 product image 1

National Instruments SCC-TC02 product image 1 additional view

8 images: additional views below.Click to enlarge

National Instruments · SCC

SCC-TC02

The SCC-TC02 conditions one thermocouple channel for an NI SCC-based DAQ system.

ManufacturerNational Instruments

ModelSCC-TC02

Product TypeThermocouple input module

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: SCC-TC02

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Channels1 differential

Bandwidth2 Hz

ConnectionThree-position screw terminal

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

Integrated thermistor circuitry provides cold-junction sensing. A gain-100 amplifier and two-pole filter condition the input.

Open-thermocouple detection.
Ground terminal for shielded thermocouples.
Supports floating or ground-referenced thermocouples.

Verified specifications

Technical data

Verified product specifications.

Thermocouple types	B, E, J, K, N, R, S, T
Input range	±100 mV
Gain	100 V/V
Field wiring	28–16 AWG
Operating temperature	0–50 °C

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

SCC

Signal conditioning

SCC-TC02

Thermocouple input

Compatibility

NI lists SCC-68 or SC-2345/2350 carriers with a 68-pin E/M Series DAQ device.

Requires a supported carrier, DAQ device, cable, and software; not a standalone acquisition device.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

SCC-TC Series Thermocouple Input Modules User GuideUser Guide And Specifications · download.ni.com

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

Data Acquisition and Control Systems

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Can it measure voltage?

Yes: ±100 mV with 2 Hz lowpass bandwidth.

How does TC02 differ from TC01?

TC02 uses screw terminals; TC01 uses a two-prong thermocouple miniconnector.
