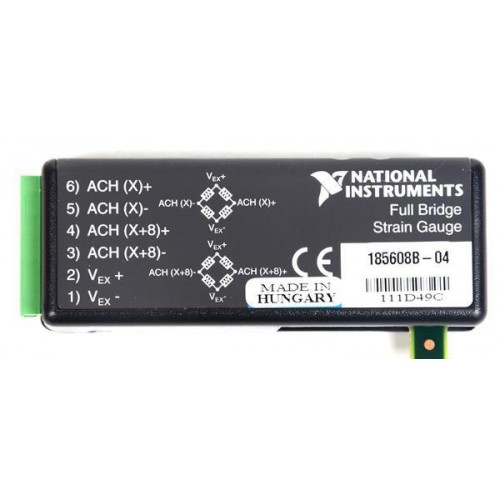

National Instruments SCC-SG04 Full-bridge strain-gage input module
1 image: Click to enlarge
National Instruments · SCC

SCC-SG04

The NI SCC-SG04 conditions two full-bridge strain-gage signals for acquisition through an SCC carrier and DAQ device.

ManufacturerNational Instruments
ModelSCC-SG04
Product TypeFull-bridge strain-gage input module
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: SCC-SG04

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Inputs2 differential channels
Bridge configurationFull bridge
Excitation+2.5 VDC
