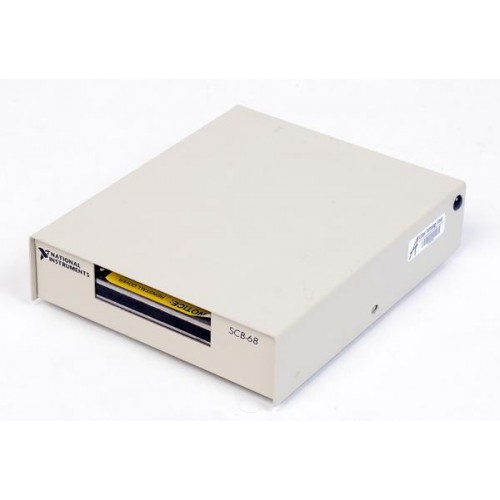

National Instruments SCB-68 Shielded I/O connector terminal block

1 image: Click to enlarge

National Instruments · NI DAQ

SCB-68

Name: SCB-68
Brand: National Instruments

The NI SCB-68 is a 68-pin shielded connector block for terminating signals from compatible NI data acquisition devices. It includes screw-terminal connections, two general-purpose breadboard areas and an onboard cold-junction compensation sensor.

ManufacturerNational Instruments

ModelSCB-68

Part Number776844-01

Product TypeShielded I/O connector terminal block

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: SCB-68

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Connection68-pin I/O breakout

Signal wiringScrew terminals

Form factorShielded desktop connector block

Custom circuitryTwo general-purpose breadboard areas

Temperature measurement supportOnboard cold-junction compensation sensor
