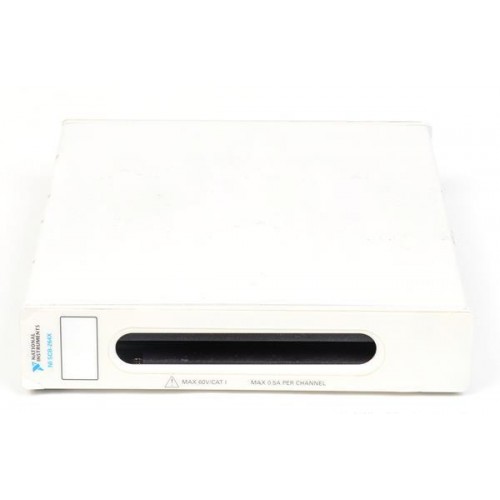

National Instruments SCB-264X Shielded screw-terminal connector block

1 image: Click to enlarge

National Instruments · PXI/PXI Express matrix switch accessories

SCB-264X

Name: SCB-264X
Brand: National Instruments

The NI SCB-264X is a shielded connector block for wiring individual signals to the rows and columns of supported PXI/PXIe-2532 and 2532B matrix switch modules through compatible terminal blocks.

ManufacturerNational Instruments

ModelSCB-264X

Part Number779341-01

Product TypeShielded screw-terminal connector block

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: SCB-264X

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Product roleRemote signal-wiring connector block

Signal terminationScrew terminals

Ribbon-cable connectors5

Manufacturer voltage designation60 VDC

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The SCB-264X provides accessible screw-terminal wiring for matrix switch signals. Ribbon cables link it to a supported module-mounted terminal block; the SCB-264X is a connection accessory rather than the matrix switch itself.

System configuration depends on the switch module, terminal-block topology, and cable arrangement. NI publishes separate compatibility guidance for the original 2532 and 2532B families.

Shielded connection path for individual matrix row and column signal wires.
Five ribbon-cable connectors interface with supported terminal blocks.
Supports stand-alone placement or DIN-rail mounting.

Verified specifications

Technical data

Verified product specifications.

Manufacturer part number	779341-01
Voltage designation	60 VDC
Ribbon-cable connector count	5
Signal termination	Screw terminals

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

PXI/PXIe-2532 and 2532B

Matrix switch module families

Supported terminal block and ribbon cables

Intermediate connection hardware

SCB-264X

Individual signal-wire termination

Verify the exact terminal block and cable configuration. TB-2645/TB-2645B arrangements have row-access limitations; do not assume direct compatibility.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

NI SCB-264X Product PageOfficial Product Page · ni.com

Open →

NI SCB-264X Installation InstructionsInstallation Manual · download.ni.com

Open →

Matrix Switch Modules: Switches Cable and Accessory CompatibilityCompatibility Guide · ni.com

Open →

How to Connect Signals to the PXI/PXIe-2532BTechnical resource

Open →

TB-2645 and SCB-264X Row-Cable Access LimitationsTechnical resource

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Is the SCB-264X a matrix switch module?

No. It is a shielded connector block that connects individual wires to a separate matrix switch through supported terminal blocks and ribbon cables.

Does the SCB-264X connect directly to the PXI-2532?

The installation instructions require an appropriate TB-264X terminal block between the SCB-264X and PXI-2532, with ribbon cables linking the connector blocks.

Can one SCB-264X access both TB-2645 row ribbon cables?

No. NI identifies a row-access limitation because one SCB-264X has only one 16-pin row connection. Consult NI's configuration guidance before using this arrangement.
