SCB-100

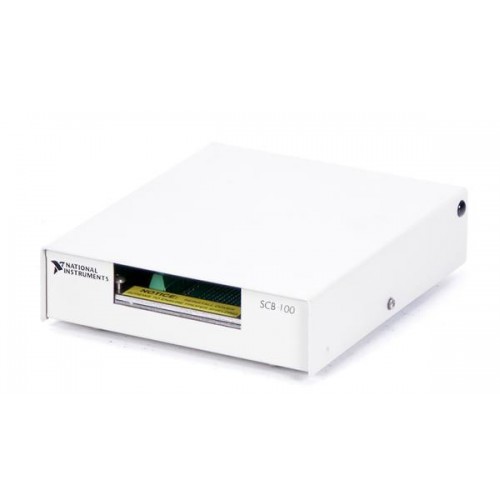

The NI SCB-100 is a shielded screw-terminal connector block for compatible 100-pin NI data acquisition devices. Used with shielded cables, it provides low-noise signal termination.

ManufacturerNational Instruments
ModelSCB-100
Part Number776990-01 · 182790-01
Product TypeShielded I/O connector block
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: SCB-100

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Device connection100-pin female SCSI type
Signal connectionScrew terminals
MountingDesktop
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The SCB-100 provides a shielded connection point between field wiring and a compatible NI DAQ device. Its screw terminals allow individual signal wires to connect through the device's 100-pin cable interface.

  • Shielded enclosure for low-noise termination with shielded cables.
  • Breadboarding area for custom circuitry.
  • DIP-switch-selectable direct and enhanced feedthrough modes.
Verified specifications

Technical data

Verified product specifications.

Connector100-pin female SCSI type
Wire gauge26–14 AWG
Terminal torque0.5–0.6 N·m
Terminal spacing5.08 mm
Dimensions (width × depth × height)17.93 × 15.37 × 4.50 cm
Weight897 g
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

100-pin NI DAQ

Device interface

SCB-100

Shielded wiring termination accessory

Part-number distinction

776990-01 identifies the shielded connector block; 182790-01 identifies the board-only version.
