National Instruments · NI SCC

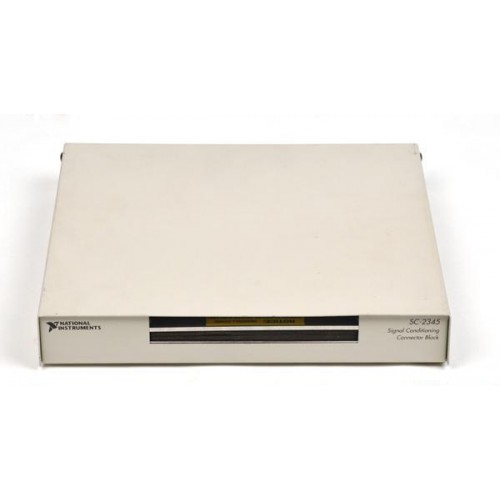

SC-2345

The National Instruments SC-2345 is a modular carrier for SCC signal conditioning modules used with compatible DAQ hardware. Measurement functions depend on the installed SCC modules and connected DAQ device.

ManufacturerNational Instruments

ModelSC-2345

Product TypeSCC signal conditioning carrier

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: SC-2345

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Product roleCarrier for SCC signal conditioning modules

DAQ connection68-pin E/M Series DAQ device and cable

Power configurationsDocumented SCC-PWR01, SCC-PWR02, and SCC-PWR03 options

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The SC-2345 provides the carrier and connectivity for an NI SCC signal conditioning system. SCC modules supply the signal-specific conditioning, while a connected DAQ device performs acquisition or output.

NI documentation distinguishes the SC-2345 connector block from the SC-2345 with configurable connectors. Confirm the physical connector version and power module before selecting cables, SCC modules, or external power equipment.

Modular carrier architecture for SCC signal conditioning modules.
Documented system connection to 68-pin E/M Series DAQ hardware.
Supports SCC-AO10 modules in analog output sockets J17 or J18.
Supports SCC-RLY01 modules in digital I/O sockets J9 through J16.

Verified specifications

Technical data

Verified product specifications.

Equipment type	SCC signal conditioning carrier
Documented DAQ interface	68-pin E/M Series DAQ device with 68-pin cable
SCC-AO10 installation sockets	J17 or J18
SCC-RLY01 installation sockets	J9 through J16

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

SCC

Modular signal conditioning system

SC-2345

Carrier connecting SCC modules to compatible DAQ hardware

Signal conditioning

Selected SCC modules determine the signal-specific functionality.

Confirm the connector variant, installed power module, SCC socket assignments, and DAQ device before configuring the system.
