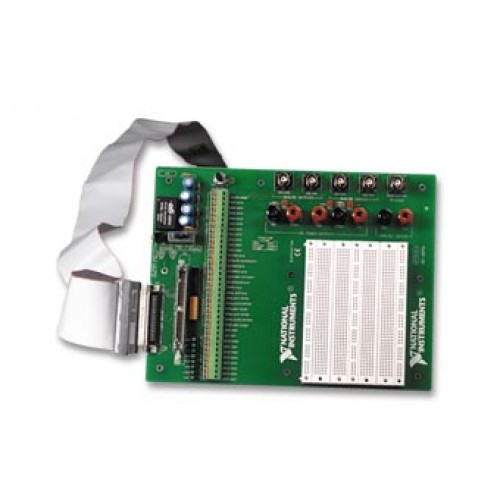

National Instruments SC-2075 Desktop signal conditioning accessory
1 image: Click to enlarge
National Instruments · NI E Series and 1200 Series DAQ

SC-2075

The SC-2075 provides desktop signal connections and circuit-prototyping facilities for NI E Series and 1200 Series DAQ devices.

ManufacturerNational Instruments
ModelSC-2075
Product TypeDesktop signal conditioning accessory
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: SC-2075

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Analog inputsUp to 8 differential with E Series; 4 with 1200 Series
BNC access2 analog inputs, 2 analog outputs, 1 trigger
Digital access8 DIO lines with individual status LEDs
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

Binding posts, BNC connectors and spring terminals expose DAQ signals at the desktop. A breadboard area supports prototype circuits.

  • Spring-terminal access to timing and counter signals.
  • Adjustable 0 to +5 V output and onboard ±15 V supply.
  • Selectable device-supplied or external +5 V power.
Verified specifications

Technical data

Verified product specifications.

External input voltage+5 ±5% VDC
No-load input power825 mW
Dimensions26.72 × 20.70 × 4.37 cm
Operating temperature0 to 40 °C
Connector counts5 BNC; 7 binding posts; 35 spring terminals
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

E Series / 1200 Series

Host DAQ

SC-2075

Desktop accessory

Compatibility

Documented for 68-pin E Series and 50-pin 1200 Series devices.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

SC-2075 User Guide, 371217A-01User Guide · docs-be.ni.com
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Is the SC-2075 a matrix switch?

No. NI identifies it as a desktop signal conditioning accessory for E Series and 1200 Series devices.

What cable connection is required?

A 68-pin cable for E Series or a 50-pin ribbon cable for 1200 Series.
