National Instruments SC-2070 DAQ termination breadboard

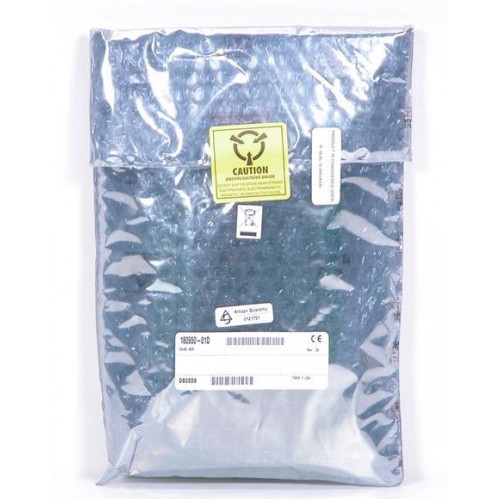

1 image: Click to enlarge

National Instruments · NI DAQ accessories

SC-2070

Name: SC-2070
Brand: National Instruments

The National Instruments SC-2070 is a termination breadboard for DAQ signal connections. NI documentation places it in the SC-207X breadboard family and identifies integration options with the SC-2056 board and CA-1000 accessory enclosure.

ManufacturerNational Instruments

ModelSC-2070

Product TypeDAQ termination breadboard

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: SC-2070

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Product roleDAQ termination breadboard

Connector50-pin IDC male header with cable latch

SC-2056 connectionConnects to J4–J7

Enclosure integrationSupported internal accessory for CA-1000

Driver guidanceNI's legacy support table lists Traditional NI-DAQ support, not NI-DAQmx

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The SC-2070 provides a termination-breadboard connection point in an NI data acquisition system. An NI application report documents its use for analog signal connections and identifies a cold-junction reference signal for thermocouple input.

For system integration, NI lists the SC-2070 for connection to SC-2056 connectors J4–J7 and for installation inside the CA-1000 enclosure. These are documented integration paths, not evidence of universal compatibility with NI DAQ hardware.

Termination breadboard for analog signal connections in DAQ systems.
Uses a 50-pin IDC male header with a cable latch.
Provides a cold-junction reference signal, as documented in an NI thermocouple application.
Can be installed as an internal accessory in the CA-1000 enclosure.

Verified specifications

Technical data

Verified product specifications.

Product classification	Termination breadboard
Interface connector	IDC male header, vertical, with cable latch
Connector pin count	50 pins
SC-2056 connection points	J4–J7
Supported enclosure installation	CA-1000 internal accessory
Legacy driver support table	Traditional NI-DAQ: Yes; NI-DAQmx: No

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

NI DAQ accessories

Data acquisition connectivity ecosystem

SC-207X

Breadboard family

SC-2070

Termination breadboard

Check the host DAQ hardware, cable mapping, and legacy driver requirements before integration. Avoid double-driving shared analog signals on the SC-2056.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

Using Modules and Accessories with the SC-2056Integration Note · download.ni.com

Open →

CA-1000 Configurable Connector Accessory Enclosure Installation GuideInstallation Guide · download.ni.com

Open →

Accesorios en Traditional DAQ y NI-DAQmxLegacy Driver Support Reference · ni.com

Open →

NI Connector Reference Library for Multisim & UltiboardTechnical resource

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Alternatives & system components

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Is the SC-2070 a matrix switch?

NI documentation identifies the SC-2070 as a termination breadboard in the SC-207X family, not as a matrix switch.

Does NI list SC-2070 support in NI-DAQmx?

NI's legacy accessory support table lists SC-2070 support under Traditional NI-DAQ and no support under NI-DAQmx. Confirm the complete host hardware and software configuration before use.

Can the SC-2070 be installed in a CA-1000 enclosure?

Yes. The CA-1000 installation guide explicitly lists the SC-2070 as an internal accessory and provides mounting and internal-cable instructions.

Where does the SC-2070 connect on an SC-2056?

NI specifies connectors J4–J7. These share analog signals with J9–J13, so connected circuitry must not double-drive the shared signals.
