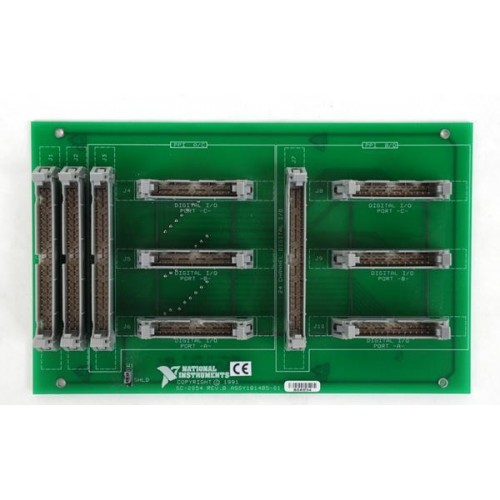

National Instruments SC-2054 Digital I/O adapter
1 image: Click to enlarge
National Instruments · Legacy NI digital I/O

SC-2054

The National Instruments SC-2054 is an adapter used in legacy digital I/O interconnection systems. NI documents its use in a DIO-96 configuration for controlling three digital SCXI modules.

ManufacturerNational Instruments
ModelSC-2054
Part Number776515-00
Product TypeDigital I/O adapter
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: SC-2054

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Product roleDigital I/O adapter
Manufacturer part number776515-00
Documented system useDIO-96 connection to three digital SCXI modules using additional adapters and cables
