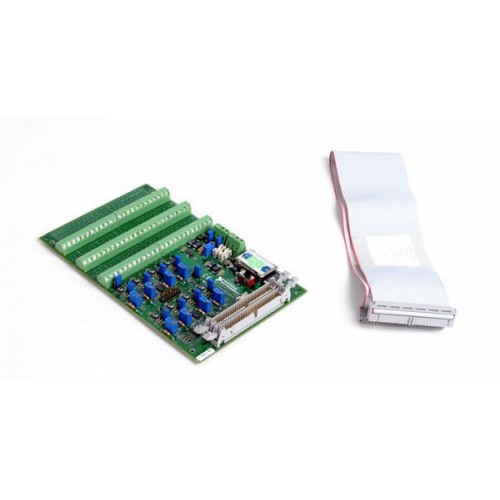

National Instruments SC-2043-SG Strain gauge signal conditioning board

1 image: Click to enlarge

National Instruments · NI DAQ

SC-2043-SG

Name: SC-2043-SG
Brand: National Instruments

The SC-2043-SG conditions eight strain gauge channels for compatible National Instruments DAQ boards.

ManufacturerNational Instruments

ModelSC-2043-SG

Product TypeStrain gauge signal conditioning board

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: SC-2043-SG

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Channels8

Gain10

FilterSingle-pole, 1.6 kHz

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

Screw terminals connect bridge signals and excitation. Conditioned outputs feed the DAQ board's analog inputs.

Jumper-selectable half-bridge completion.
Sockets for quarter-bridge completion resistors.
Per-channel offset nulling.

Verified specifications

Technical data

Verified product specifications.

Conditioned channels	8
Amplifier gain	10 V/V
Filter frequency	1.6 kHz

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

NI DAQ

Acquisition hardware

SC-2043-SG

Signal conditioning

Compatibility

DAQCard-1200: PR50-50F cable to Lab/1200 connector J9.

Check Table 2-1 for the correct DAQ connector and cable.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

SC-2043-SG User ManualUser Manual · docs-be.ni.com

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Does it support full bridges?

Yes. Disable half-bridge completion using the channel jumpers.

Is external excitation supported?

Yes. Onboard or user-supplied external excitation serves all channels.
