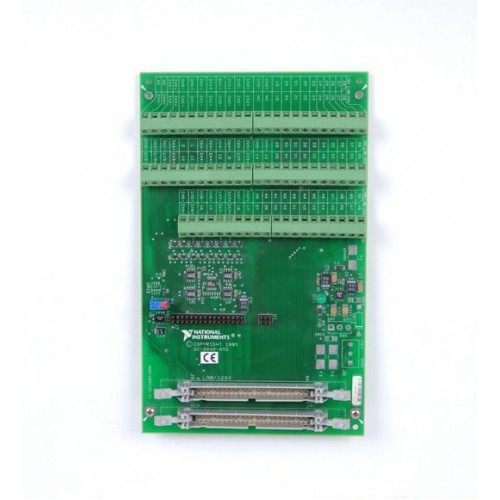

National Instruments SC-2042-RTD RTD signal conditioning accessory

1 image: Click to enlarge

National Instruments · NI DAQ signal conditioning accessories

SC-2042-RTD

Name: SC-2042-RTD
Brand: National Instruments

The National Instruments SC-2042-RTD is a signal conditioning accessory designed specifically for resistance temperature detector measurements. It conditions RTD signals for a DAQ measurement system rather than serving as the temperature sensor itself.

ManufacturerNational Instruments

ModelSC-2042-RTD

Product TypeRTD signal conditioning accessory

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: SC-2042-RTD

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Measurement functionRTD signal conditioning

Accessory familySC-204x

Enclosure integrationListed internal accessory for the CA-1000

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

NI identifies the SC-2042-RTD as a dedicated RTD signal conditioning device and describes it as an alternative to using SCXI modules for RTD measurements.

For enclosure-based integration, NI documents installation of the SC-2042-RTD inside the CA-1000 configurable connector accessory enclosure. The enclosure guide provides mounting and internal cable instructions.

Purpose-designed signal conditioning for RTD measurements.
Documented installation within the CA-1000 accessory enclosure.
Documented connection to SC-2056 accessory-board connectors J4–J7, subject to DAQ configuration restrictions.

Verified specifications

Technical data

Verified product specifications.

Signal conditioning function	Resistance temperature detector measurement
DAQ input mode in documented SC-2056 configuration	Differential (DIFF)
Supported enclosure	CA-1000 configurable connector accessory enclosure

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

SC-204x signal conditioning accessories

Product family

SC-2042-RTD

RTD signal conditioning accessory

Enclosure option

NI provides CA-1000 installation instructions for this accessory.

In the documented SC-2056 configuration, use differential DAQ inputs and do not combine SC-2042-RTD and SC-2043-SG boards on the same SC-2056.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

LabVIEW Data Acquisition Basics Manual — RTD measurement referenceApplication Reference Manual · download.ni.com

Open →

CA-1000 Configurable Connector Accessory Enclosure Installation GuideInstallation Guide · download.ni.com

Open →

Using Modules and Accessories with the SC-2056Integration Note · download.ni.com

Open →

SC-2056 integration restrictions for SC-2042-RTDTechnical resource

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Is the SC-2042-RTD an RTD sensor?

No. NI describes it as a signal conditioning device specifically for RTD measurement, not as the temperature-sensing element.

Can the SC-2042-RTD be installed in a CA-1000 enclosure?

Yes. The CA-1000 installation guide explicitly lists the SC-2042-RTD and provides mounting instructions.

Can SC-2042-RTD and SC-2043-SG boards share an SC-2056?

No. NI warns against this combination because the SC-2042-RTD requires differential inputs while the SC-2043-SG requires nonreferenced single-ended inputs.
