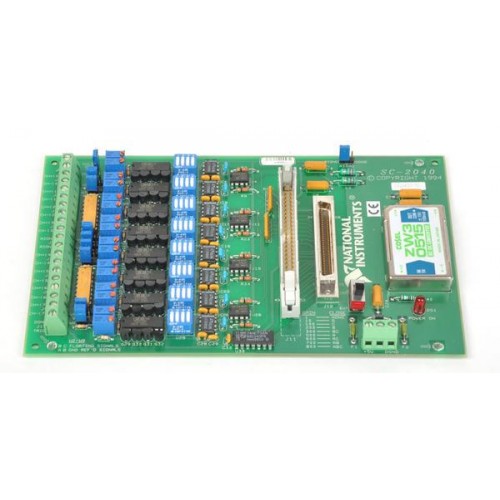

National Instruments SC-2040 Simultaneous sample-and-hold accessory

1 image: Click to enlarge

National Instruments · NI DAQ

SC-2040

Name: SC-2040
Brand: National Instruments

The National Instruments SC-2040 is a simultaneous sample-and-hold accessory for DAQ systems. It provides simultaneous sampling with differential amplifiers, rather than matrix-switch routing.

ManufacturerNational Instruments

ModelSC-2040

Product TypeSimultaneous sample-and-hold accessory

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: SC-2040

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

FunctionSimultaneous sample and hold

AmplifiersEight simultaneously sampling differential amplifiers

DAQ configurationAll analog input channels must use differential input mode

Driver limitationNot supported after NI-DAQmx 8.0.1

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

NI identifies the SC-2040 among its simultaneous-sampling accessories. This sampling method uses sample-and-hold circuitry and an independent amplifier for each channel to capture channel values at the same instant before conversion.

System integration requires attention to legacy DAQ configuration and driver support. NI documentation requires differential analog input configuration for an attached SC-2040, and its accessory support table states that SC-2040 support does not extend beyond NI-DAQmx 8.0.1.

Simultaneous sample-and-hold operation for multichannel acquisition.
Eight simultaneously sampling differential amplifiers, as described by an NI employee in NI technical support discussions.
Listed as an internal accessory option for the CA-1000 configurable connector accessory enclosure.

Verified specifications

Technical data

Verified product specifications.

Sampling method	Simultaneous sample and hold
Required DAQ analog input configuration	Differential input mode on all analog input channels
NI-DAQmx support ceiling	8.0.1; later versions are not supported

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

NI DAQ / SC analog accessories

Acquisition ecosystem and accessory family

SC-2040

Simultaneous sample-and-hold accessory

Enclosure option

The CA-1000 installation guide lists the SC-2040 as a supported internal accessory.

Confirm the DAQ device, cabling, differential input configuration, and legacy driver version before integration.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

Types of Scanning Supported by NI Acquisition DevicesKnowledge Article · knowledge.ni.com

Open →

Accessories in Traditional DAQ and NI-DAQmx (Spanish)Driver Support Reference · ni.com

Open →

CA-1000 Configurable Connector Accessory Enclosure Installation GuideInstallation Guide · download.ni.com

Open →

Archived LabVIEW Error Codes: SC-2040 Input and Hold Mode RequirementsTechnical resource

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

FAQ

Product-specific questions

Product-specific answers based on available technical information.

What does the SC-2040 do?

The SC-2040 provides simultaneous sample-and-hold functionality for DAQ applications. NI lists it among simultaneous-sampling hardware.

Does the SC-2040 support recent NI-DAQmx versions?

NI's accessory support reference states that the SC-2040 is not supported after NI-DAQmx 8.0.1. Do not assume support in later releases.

Which analog input mode is required?

NI's archived LabVIEW error-code reference states that all analog input channels must be configured for differential input mode when an SC-2040 is attached.
