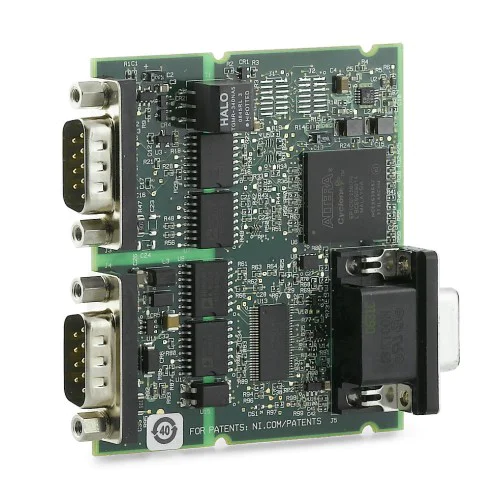

The NI sbRIO-9853 is a board-only, two-port high-speed CAN interface module for CompactRIO, intended for OEM integration.
Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.
Key product information and technical features.
The sbRIO-9853 supports FPGA-based CAN applications using NI-RIO and the LabVIEW FPGA Module, including low-level control, triggering, and byte-level frame manipulation.
NI lists this board-only module as NI 9853E under its Single-Board RIO module range.
Verified product specifications.
| Number of CAN ports | 2 ports |
|---|---|
| CAN physical layer | High-speed |
| Maximum baud rate | 1 Mbps |
| Operating temperature | -40 to 70 °C |
| CAN transceiver | Philips TJA 1041 |
| CAN1 external supply voltage | 8 to 25 V DC |
| Bus connection | C Series |
Confirm condition, included accessories and revision before ordering.
Confirmed per unit.
Device / accessories confirmed in quote.
Exact revision confirmed when relevant.
Review system components and compatibility requirements.
Manufacturer
Supported platform and module bus
Board-only CAN interface
NI-RIO and LabVIEW FPGA Module
Manuals, software and technical resources for this model.
Review shipping, warranty and return terms before ordering.
Choose pricing, rental or repair for this exact model.
Product-specific answers based on available technical information.
No. It is a non-enclosed CAN interface module for CompactRIO.
NI identifies it as the NI 9853E two-port high-speed CAN module, board only, under model sbRIO-9853.
The official specifications state 1 Mbps.
