National Instruments sbRIO-9651 System on Module

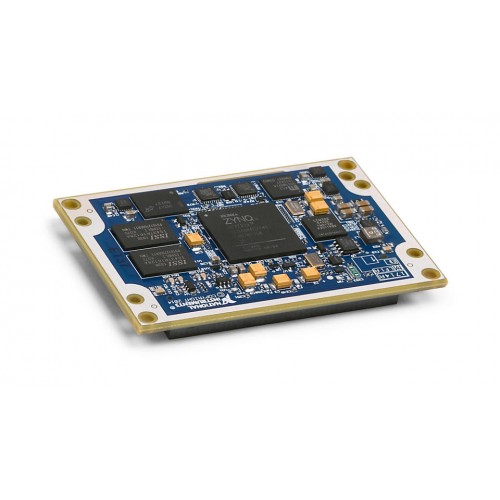

1 image: Click to enlarge
National Instruments · CompactRIO

sbRIO-9651

The NI sbRIO-9651 is a CompactRIO System on Module combining real-time processing and a reconfigurable FPGA for embedded OEM integration. It requires a user-designed carrier board for power and I/O interfaces.

ManufacturerNational Instruments
ModelsbRIO-9651
Part Number783525-01 · 783525-02
Product TypeSystem on Module
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: sbRIO-9651

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
CPU667 MHz dual-core
FPGAXilinx Zynq-7020
Memory512 MB DRAM; 512 MB storage
Operating systemNI Linux Real-Time
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

Designed for embedded control and monitoring, the sbRIO-9651 integrates a Xilinx Zynq system-on-chip, memory and NI middleware.

The carrier board determines the implemented power and I/O connections, board layout and enclosure integration. This is an OEM module rather than a standalone controller with a complete set of external connectors.

  • Combines a dual-core processor and Zynq-7020 FPGA.
  • Runs NI Linux Real-Time for embedded applications.
  • Supports custom carrier-board implementation of application-specific interfaces.
Verified specifications

Technical data

Verified product specifications.

CPU clock frequency667 MHz
CPU cores2
DRAM512 MB
Storage512 MB
FPGAZynq-7020
J1 connector320-pin, 8 × 40 position
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

CompactRIO System on Module

Embedded platform

sbRIO-9651

OEM processing and FPGA module

Carrier-board integration

A custom carrier supplies power and I/O interfaces.

Confirm the kit variant and carrier-board implementation before planning system integration.
