National Instruments sbRIO-9269 Non-enclosed C Series voltage output module

1 image: Click to enlarge

National Instruments · Single-Board RIO / CompactRIO

sbRIO-9269

Name: sbRIO-9269
Brand: National Instruments

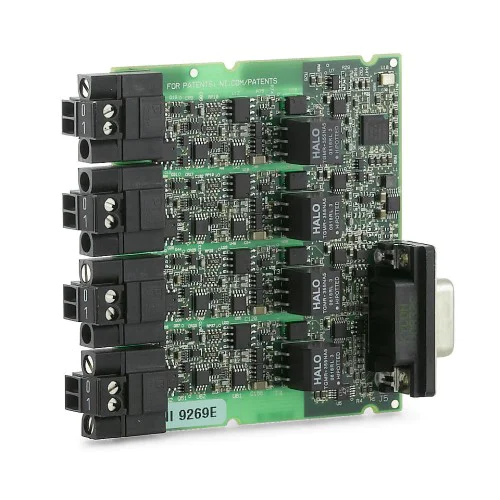

The NI sbRIO-9269, also identified as NI 9269E, is a board-only C Series module with four isolated ±10 V analog outputs. It provides 16-bit resolution and simultaneous updates up to 100 kS/s per channel for OEM integration.

ManufacturerNational Instruments

ModelsbRIO-9269

Part Number781120-01

Product TypeNon-enclosed C Series voltage output module

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: sbRIO-9269

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Outputs4 voltage output channels

Output range−10 V to +10 V

Resolution16 bits

Maximum update rate100 kS/s per channel, simultaneous

ConstructionBoard-only, non-enclosed

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The sbRIO-9269 supplies four bipolar analog voltage outputs in a non-enclosed C Series format. NI lists the board-only NI 9269E under this model, with part number 781120-01.

NI identifies OEM integration, automotive testing and industrial systems with multiple ground planes as relevant uses. Channel-to-channel isolation helps separate output circuits in systems with multiple electrical domains.

Four bipolar voltage outputs with a ±10 V range.
Simultaneous output updates up to 100 kS/s per channel.
16-bit analog output resolution.
Channel-to-channel isolated output architecture.
Non-enclosed construction intended for OEM applications.

Verified specifications

Technical data

Verified product specifications.

Analog output channels	4 channels
Analog output voltage range	−10 to +10 V
Analog output resolution	16 bits
Maximum update rate	100 kS/s/ch
Maximum current drive	10 mA
Channel-to-channel isolation	250 Vrms
Front connection type	Screw terminal
Enclosed	No
Conformal coated	No

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

Single-Board RIO

Board-level integration ecosystem

C Series

Module interface and family

sbRIO-9269 / NI 9269E

Board-only isolated voltage output module

Confirm the controller, C Series connection hardware and board-level mounting requirements before integration; do not infer CompactDAQ compatibility from the catalog category.

Manuals & software
