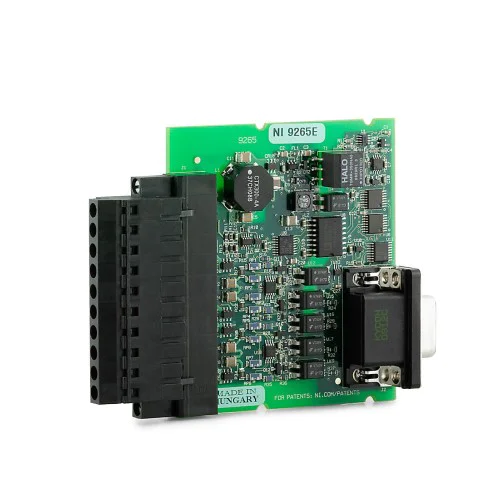

National Instruments sbRIO-9265 Board-only C Series current output module

1 image: Click to enlarge

National Instruments · Single-Board RIO / CompactRIO

sbRIO-9265

Name: sbRIO-9265
Brand: National Instruments

The NI sbRIO-9265 is a four-channel, board-only current output module for OEM integration. NI identifies part number 780921-01 as the NI 9265E, with 16-bit resolution and a 100 kS/s per-channel update rate.

ManufacturerNational Instruments

ModelsbRIO-9265

Part Number780921-01

Product TypeBoard-only C Series current output module

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: sbRIO-9265

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Analog outputs4 channels

Current range0–20 mA

Maximum update rate100 kS/s/channel

Resolution16-bit

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The sbRIO-9265 belongs to NI's Single-Board RIO module range, which provides non-enclosed versions of C Series modules. NI lists this current output board as the NI 9265E under part number 780921-01.

Designed to control industrial current-driven actuators, it requires an external power supply and includes open-loop detection.

Four 16-bit current output channels.
Up to 100 kS/s per channel.
Open-loop detection generates a software interrupt.
Outputs zero at system power-on.

Verified specifications

Technical data

Verified product specifications.

Analog output channels	4 channels
Output current range	0–20 mA
Maximum analog update rate	100 kS/s/channel
Resolution	16 bit
Front connection	Screw terminal
Enclosed	No
Conformal coating	No
External power supply	Required

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

Single-Board RIO

Board-only module ecosystem

sbRIO-9265 / NI 9265E

Current output board

Manufacturer-listed platform

CompactRIO

Confirm host-specific mechanical and electrical requirements before integrating this non-enclosed board.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

sbRIO-9265 Official Product PageProduct Page · ni.com

Open →

NI Single-Board RIO HardwareManufacturer Module Reference · ni.com

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Product-specific questions

Product-specific answers based on available technical information.

Which part number identifies the sbRIO-9265 board?

NI lists 780921-01 as the sbRIO-9265, described as the NI 9265E current output board.

Does it need external power?

Yes. The sbRIO-9265 requires an external power supply.

Is the sbRIO-9265 enclosed?

No. It is a board-only module intended for OEM integration.
