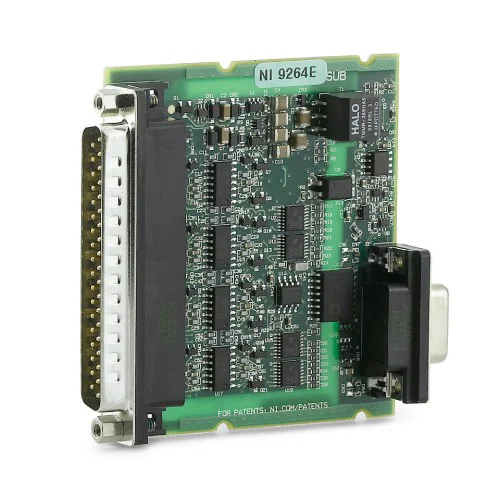

National Instruments sbRIO-9264 Board-only C Series voltage output module
1 image: Click to enlarge
National Instruments · Single-Board RIO

sbRIO-9264

The NI sbRIO-9264 is a non-enclosed, 16-channel voltage output module for OEM integration. It provides ±10 V analog outputs with 16-bit resolution and simultaneous updates up to 25 kS/s per channel.

ManufacturerNational Instruments
ModelsbRIO-9264
Part Number781119-01
Product TypeBoard-only C Series voltage output module
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: sbRIO-9264

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Analog outputs16 channels
Output range±10 V
Resolution16 bits
Maximum update rate25 kS/s/ch, simultaneous
ConstructionBoard-only, non-enclosed
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

Designed for higher-channel-count OEM systems, the sbRIO-9264 has a dedicated digital-to-analog converter on each output channel.

This is a board-only C Series module in the Single-Board RIO ecosystem, not an enclosed NI-9264 module. Confirm the controller and module connection arrangement before integration.

  • Simultaneous analog output updates.
  • Dedicated DAC for each channel.
  • D-Sub front connection.
Verified specifications

Technical data

Verified product specifications.

Analog output channels16 channels
Analog output voltage range-10 to +10 V
Analog output resolution16 bits
Maximum update rate25 kS/s/ch
Maximum current drive4 mA
Analog output isolation60 VDC channel-to-earth ground
Front connectionD-Sub
EnclosedNo
Conformal coatedNo
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

Single-Board RIO

Embedded hardware ecosystem

sbRIO-9264

Board-only C Series voltage output module

Verify the specific Single-Board RIO controller and connection hardware; do not assume enclosed-module chassis compatibility.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

NI sbRIO-9264 Product DetailsProduct Page · ni.com
Open →
NI-9264 and sbRIO-9264 SpecificationsSpecifications · ni.com
Open →
Differences Between NI-92xx and sbRIO-92xx ModulesTechnical resource
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Is the sbRIO-9264 enclosed?

No. It is a board-only module intended for OEM integration.

Can all outputs update simultaneously?

Yes. The module supports simultaneous updates at up to 25 kS/s per channel.
