NI (National Instruments) sbRIO-9225 C Series voltage input module (board-only)

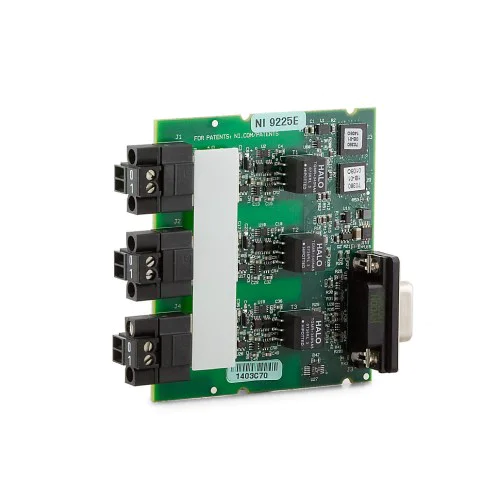

1 image: Click to enlarge
NI (National Instruments) · CompactRIO

sbRIO-9225

The NI sbRIO-9225 is a board-only C Series voltage input module with 3 differential channels, a 0–300 Vrms input range and 24-bit resolution. It supports simultaneous sampling at up to 50 kS/s per channel.

ManufacturerNI (National Instruments)
ModelsbRIO-9225
Part Number780588-01 · 780588-10
Product TypeC Series voltage input module (board-only)
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: sbRIO-9225

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Channels3 differential
Range0–300 Vrms
Resolution24-bit
Sample rate50 kS/s/ch
Isolation600 Vrms ch-ch
PlatformCompactRIO
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The sbRIO-9225 provides three differential voltage inputs with simultaneous sampling and anti-aliasing filtering. Its 24-bit resolution and maximum sample rate of 50 kS/s per channel support voltage acquisition across a 0–300 Vrms input range.

NI identifies this board-only module for CompactRIO systems and OEM applications. It uses screw-terminal front connections, provides 600 Vrms channel-to-channel isolation, and has neither an enclosure nor conformal coating.

  • Three differential analog input channels with a 0–300 Vrms input range.
  • 24-bit analog input resolution.
  • Simultaneous sampling at up to 50 kS/s per channel.
  • 600 Vrms channel-to-channel isolation and anti-aliasing filtering.
  • Screw-terminal front connections on a board-only module.
  • Specified operating temperature range of -40 °C to 70 °C.
Verified specifications

Technical data

Verified product specifications.

Differential analog input channels3 channels
Analog input voltage range0 to 300 Vrms
Analog input resolution24 bits
Maximum sample rate50 kS/s per channel
Simultaneous samplingYes
Analog input isolation600 Vrms channel-to-channel
FilteringAnti-aliasing
Front connection typeScrew terminal
Bus connectionC Series
Operating temperature-40 to 70 °C
EnclosedNo
Conformal coatedNo
NI part numbers780588-01, 780588-10
