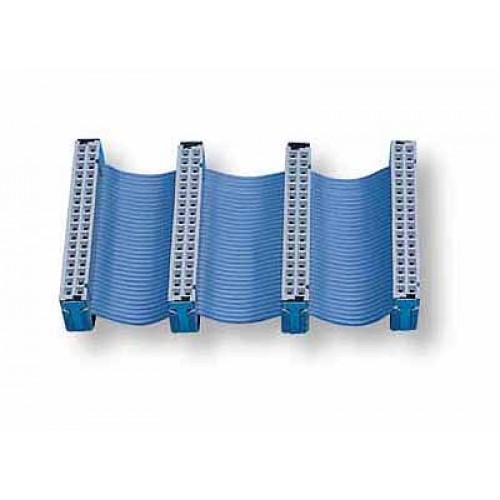

National Instruments RTSI Bus Cables RTSI ribbon cable family

1 image: Click to enlarge

National Instruments · NI plug-in boards with RTSI connectors

RTSI Bus Cables

Name: RTSI Bus Cables
Brand: National Instruments

NI RTSI Bus Cables link adjacent RTSI-equipped plug-in boards for system timing and synchronization. This catalog record covers a cable family; the required variant depends on board count and connector placement.

ManufacturerNational Instruments

ModelRTSI Bus Cables

Part Number776249-02 · 776249-03

Product TypeRTSI ribbon cable family

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: RTSI Bus Cables

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Interface34-pin female RTSI

Standard configurations2, 3, 4, or 5 board connections

Extended configurationFive-board cable for mixed long and short boards

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

RTSI stands for Real-Time System Integration. It allows supported NI boards to exchange timing and control signals for synchronization.

For installations mixing long and short boards, NI's installation guide specifies the extended five-board cable. Group boards with similar RTSI connector positions together and use the cable's single long center section between the adjacent short and long boards.

Ribbon construction connects RTSI headers on adjacent NI plug-in boards.
Standard variants support two through five PCI or AT/ISA devices.
Extended five-board routing accommodates different board lengths and connector positions.

Verified specifications

Technical data

Verified product specifications.

Connector type	34-pin female RTSI at front and back ends
776249-02 configuration	2 ribbon connections; 44.5 mm length
776249-03 configuration	3 ribbon connections; 89 mm length
776249-04 configuration	4 ribbon connections; 133.5 mm length
776249-05 configuration	5 ribbon connections; 178 mm length
777562-05 configuration	Extended length; 5 ribbon connections; 311 mm length

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

RTSI bus

Inter-board timing and control interface

RTSI Bus Cables

Physical connection between adjacent board RTSI connectors

Extended cable layout

Only one long cable section is provided; group boards by connector position.

Confirm each board's RTSI support and connector placement before selecting the cable variant.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

RTSI Cable — Product Details and Variant ComparisonOfficial Product Page · ni.com

Open →

RTSI Bus Cable Installation GuideInstallation Guide · download.ni.com

Open →

Real-Time System Integration (RTSI) and Configuration ExplainedTechnical Support Article · ni.com

Open →

RTSI Cable Product CertificationsTechnical resource

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

FAQ

Product-specific questions

Product-specific answers based on available technical information.

What does an RTSI cable do?

It links supported boards so they can share timing and control signals for synchronization.

When is the extended five-board cable needed?

NI specifies the extended cable for connecting a mixture of long and short boards. Its long center section bridges the differing connector positions.

Does connecting the cable complete NI-DAQmx configuration?

No. For the NI-DAQmx workflow described by NI, register the physical RTSI cable in Measurement & Automation Explorer (NI MAX) after connecting the devices.
