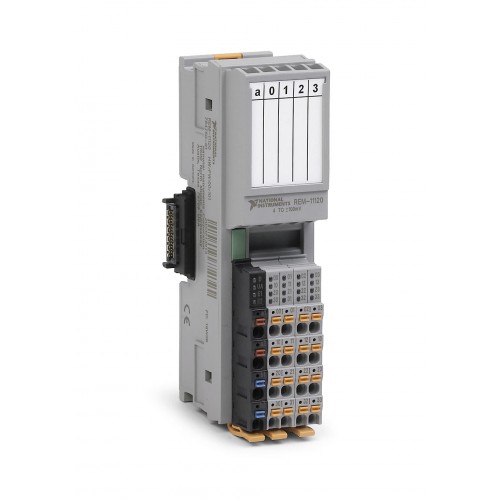

National Instruments REM-11120 Temperature input module
1 image: Click to enlarge
National Instruments · NI Remote I/O

REM-11120

The NI REM-11120 is a Remote I/O temperature input module with four thermocouple channels and one voltage channel. It supports adjustable filtering and optional external cold junction compensation or Pt100 RTD measurements.

ManufacturerNational Instruments
ModelREM-11120
Part Number784750-01
Product TypeTemperature input module
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: REM-11120

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Thermocouple inputs4 channels, ±100 mV
Additional voltage input1 channel, ±5 V
A/D resolution24-bit
System architectureDIN-rail Remote I/O with EtherCAT bus coupler
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The REM-11120 adds temperature inputs to a modular NI Remote I/O installation. The system combines DIN-rail modules with an EtherCAT bus coupler and is controlled by a real-time controller, such as a CompactRIO Controller or Industrial Controller.

  • Supports thermocouple types U, T, L, J, E, K, N, S, R, B, C, W and HK.
  • Adjustable input filter time.
  • Optional external cold junction compensation or Pt100 RTD measurements.
  • Spring-terminal connections for tool-free wiring.
Verified specifications

Technical data

Verified product specifications.

Thermocouple/linear voltage inputs4 channels
Thermocouple/linear voltage range±100 mV
Additional voltage input1 channel, -5 to +5 V
A/D resolution24 bit
Conversion principleSigma-delta
Measured value representation16 bits: 15 bits plus sign
Selectable input filter times40, 60, 100, 120 ms
Operating temperature-25 to +60 °C
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

NI Remote I/O

DIN-rail modular I/O system with EtherCAT bus coupler

REM-11120

Temperature input module

Compatibility

NI documents REM-11120 Pt100 configuration using LabVIEW and NI-Industrial Communications for EtherCAT.

Plan the installation around the Remote I/O bus coupler and real-time controller architecture.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

REM-11120 Official Product PageProduct Page · ni.com
Open →
NI REM-11120 DatasheetDatasheet · download.ni.com
Open →
Pt100 Temperature Measurement Using the REM-11120 for Remote I/OTechnical resource
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Is the 24-bit conversion also the reported measurement word size?

No. The A/D converter is 24-bit, while measured values use 16 bits, including a sign bit.

Can the REM-11120 measure Pt100 sensors?

Yes. NI documents reading two Pt100 RTDs through the Cold Junction 0 and Cold Junction 1 terminals, with configuration through NI-Industrial Communications for EtherCAT in LabVIEW.
