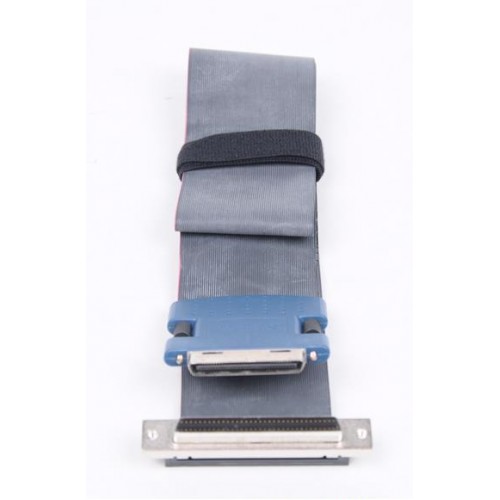

National Instruments RC68-68 Unshielded ribbon cable
1 image: Click to enlarge
National Instruments · NI DAQ

RC68-68

The NI RC68-68 is an unshielded ribbon cable for supported NI DAQ connections, with a 68-pin VHDCI device connector and a 68-pin SCSI female accessory connector. The catalog record does not identify the cable length.

ManufacturerNational Instruments
ModelRC68-68
Part Number187252-0R25 · 187252-0R5
Product TypeUnshielded ribbon cable
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: RC68-68

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Device connection68-pin VHDCI male
Accessory connection68-pin SCSI female
ConstructionUnshielded flat ribbon
Documented lengths0.25, 0.5, and 1 m; specific variant not identified
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The RC68-68 provides ribbon-cable connectivity between supported NI DAQ hardware and accessories. NI lists it among the cable options for PCIe-6353 and PXIe-6353 devices.

Select the cable by the exact device and accessory combination, not by pin count alone. NI distinguishes the VHDCI-to-SCSI RC68-68 from the SCSI-to-SCSI R68-68.

  • Flexible, unshielded ribbon construction.
  • VHDCI device-side and SCSI accessory-side termination.
  • Three documented length variants: 0.25, 0.5, and 1 m.
Verified specifications

Technical data

Verified product specifications.

Device-side connector68-pin 0.8 mm VHDCI male plug
Accessory-side connector68-pin 0.050-inch SCSI D-Type female receptacle
ShieldingNone
Twisted pairsNone
Signal and +5 V conductor gauge30 AWG
Length variants and part numbers0.25 m: 187252-0R25; 0.5 m: 187252-0R5; 1 m: 187252-01
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

NI DAQ VHDCI connections

Device interface

RC68-68

Unshielded VHDCI-to-SCSI ribbon cable

Compatibility

NI lists RC68-68 in the PCIe-6353 and PXIe-6353 cable and accessory documentation; consult the device-specific configuration guidance.

Confirm the exact device, accessory, and cable length before selection; 68-pin connectors alone do not establish compatibility.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

68-Pin VHDCI Cables — NI DAQ Cable GuideCable Specifications And Connector Guide · ni.com
Open →
NI R68F-68F Cable Family — Includes RC68-68 VariantsManufacturer Product Page · ni.com
Open →
NI DAQ Multifunction I/O Cable GuideTechnical resource
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

Test Equipment Parts & Accessories

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Is the RC68-68 the same connector configuration as the R68-68?

No. NI's cable guide identifies RC68-68 as VHDCI-to-SCSI and R68-68 as SCSI-to-SCSI.

Which length does this catalog record identify?

No specific length is supplied. NI documents 0.25 m, 0.5 m, and 1 m variants under distinct part numbers.
