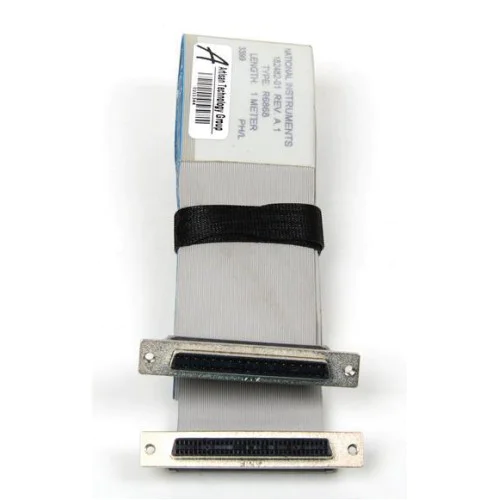

National Instruments R6868 Unshielded 68-pin ribbon cable

1 image: Click to enlarge

National Instruments · NI DAQ

R6868

Name: R6868
Brand: National Instruments

The National Instruments R6868 is an unshielded, 68-conductor flat ribbon cable for connecting supported NI DAQ devices to 68-pin accessories. It has a 68-pin SCSI D-Type female connector at each end; the length of this catalog item is not specified.

ManufacturerNational Instruments

ModelR6868

Product TypeUnshielded 68-pin ribbon cable

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: R6868

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Cable construction68-conductor flat ribbon

Connections68-pin female SCSI D-Type at both ends

ShieldingUnshielded; no twisted pairs

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

R6868 provides ribbon-cable interconnection between compatible NI hardware and external 68-pin accessories. NI documentation identifies its use with supported analog-output devices, including NI 670x, PCI-671x, PXI-671x, and NI 673x devices.

NI groups R6868 within its R68F-68F cable product page, which also includes RC68-68 variants with different connector arrangements. Select by the exact part number and connector type rather than treating every variant on that page as interchangeable.

Flat ribbon construction with 68 conductors.
Female 68-pin SCSI D-Type connectors on both cable ends.
Unshielded construction without twisted pairs.

Verified specifications

Technical data

Verified product specifications.

Conductor count	68 conductors
Device-side connector	68-pin female SCSI D-Type
Accessory-side connector	68-pin female SCSI D-Type
Shielding	None
Twisted pairs	None

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

NI DAQ / 68-pin SCSI

Device-to-accessory interface

R6868

Unshielded ribbon interconnect

Compatibility

The NI PCI-6023E and PCI-6024E user manual lists R6868 for connection to 68-pin accessories.

Confirm the device model, accessory, connector type, and required length. A 68-pin connector alone does not establish compatibility.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

NI R68F-68F Cable Product Page — Includes R6868 VariantsProduct Page · ni.com

Open →

68-Pin SCSI Cables: DAQ Multifunction I/O Cable GuideCable Guide · ni.com

Open →

NI 6023E/6024E/6025E User Manual — I/O Connector and Cable SelectionTechnical resource

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Is the R6868 shielded?

No. NI specifies unshielded ribbon construction with no twisted pairs.

What length is this R6868?

The supplied catalog record does not identify a length or manufacturer part number. NI lists R6868 variants 182482-0R25 at 0.25 m and 182482-01 at 1 m; neither has been assigned to this item.

Does the R6868 terminate directly in screw terminals?

No. It terminates in two 68-pin connectors. Screw-terminal connections require a compatible external accessory.
