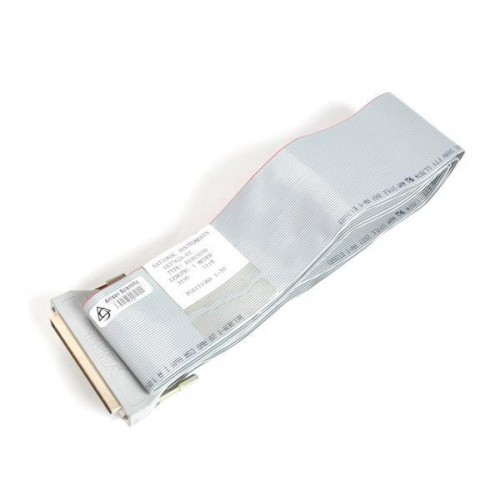

National Instruments R1005050 100-pin to dual 50-pin ribbon cable

1 image: Click to enlarge

National Instruments · NI DAQ and digital I/O connectivity

R1005050

Name: R1005050
Brand: National Instruments

The National Instruments R1005050 is a Y-shaped ribbon cable that connects supported 100-pin NI devices to two 50-pin IDC connections. NI also identifies this cable as R100M-50F-50F; the catalog record does not specify a particular cable length.

ManufacturerNational Instruments

ModelR1005050

Part Number182762-0R5 · 182762-01

Product Type100-pin to dual 50-pin ribbon cable

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: R1005050

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Connection layoutOne 100-pin connection split into two 50-pin connections

Accessory connectorsTwo 50-pin female IDC connectors

Cable constructionUnshielded ribbon cable

Documented length variants0.5 m, 1 m, and 2 m; actual variant not identified in this record

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The R1005050 provides a split connection from a supported device's 100-pin I/O connector to one or two 50-pin accessories. The NI 651x manual documents its use with CB-50 and CB-50LP terminal blocks.

Connector count alone does not establish compatibility. NI distinguishes the R1005050 from the NB5 cable by both its 100-pin connector and its 50-pin connector pin assignments, and directs users to the connected device's manual for the applicable pinout.

Y-shaped ribbon assembly provides two 50-pin branches from one 100-pin device connection.
The two 50-pin connectors are identified by pin groups 1–50 and 51–100.
Documented for connecting the PCI-6025E to 50-pin signal accessories.

Verified specifications

Technical data

Verified product specifications.

Device-side connector	100-pin male, SCSI-type
Accessory-side connectors	Two 50-pin female IDC connectors
Shielding	Unshielded
Length variant: 182762-0R5	0.5 m
Length variant: 182762-01	1 m
Length variant: 182762-02	2 m

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

Supported 100-pin NI I/O devices

Device-side connection

R1005050

100-pin to dual 50-pin ribbon interconnect

CB-50 / CB-50LP

Documented terminal-block options for NI 651x connections

Check the exact device pinout and cable length before selection. R1005050 and NB5 have different connectors and pin assignments.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

R100M-50F-50F Cable — NI product pageProduct Page · ni.com

Open →

R1005050 and NB5 Ribbon Differences and Connector PinoutsTechnical Reference · ni.com

Open →

NI 651x User ManualUser Manual · docs-be.ni.com

Open →

Signal Mapping for 100-Pin to Two 50-Pin Connector CablesTechnical resource

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Is R1005050 also called R100M-50F-50F?

Yes. NI's R100M-50F-50F product page explicitly identifies R1005050 as another name for this cable.

Does the R1005050 work with the PCI-DIO-96?

Yes. NI explicitly confirms that the R1005050 cable assembly is compatible with the PCI-DIO-96 and refers users to the device manual for connector pinouts.

Can an NB5 cable be treated as interchangeable with R1005050?

No. NI documents different 100-pin connectors and different 50-pin pin assignments. Its comparison identifies NB5 for PC-DIO-96 and PC-DIO-96/PnP, while R1005050 serves other specified 100-pin devices.
