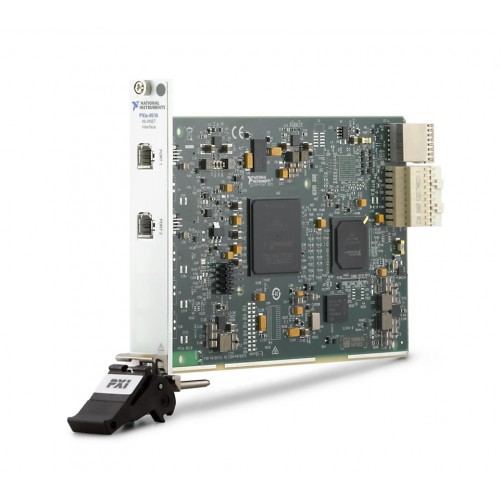

NI (National Instruments) PXIe-8510 PXIe, 2-Port or 6-Port PXI Vehicle Multiprotocol Interface Module
1 image: Click to enlarge
NI (National Instruments) · PXI Express

PXIe-8510

The NI PXIe-8510 is a hardware-selectable CAN and LIN interface for PXI Express systems using the NI-XNET driver. The model family includes two- and six-port versions; confirm the part number for the required configuration.

ManufacturerNI (National Instruments)
ModelPXIe-8510
Part Number784122-01 · 784121-01
Product TypePXIe, 2-Port or 6-Port PXI Vehicle Multiprotocol Interface Module
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXIe-8510

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
CAN Physical LayerLow-Speed/Fault Tolerant, High-Speed, Flexible Data Rate
LIN Physical LayerLIN
Bus ConnectionPXI Express
Operating Temperature Range0 °C to 55 °C
Maximum Baud Rate8 MB/s
Active Connector Slot Location1
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The PXIe-8510 is a vehicle multiprotocol interface module that brings CAN and LIN connectivity to a PXI Express system. Its XNET ports operate as CAN or LIN ports according to the accessory connected, allowing physical-layer selection in hardware.

Designed for NI-XNET applications, the interface supports real-time manipulation of CAN frames and signals for hardware-in-the-loop simulation, rapid control prototyping, bus monitoring and automation control. Its DMA engine transfers frames and signals between the interface and user program without CPU interrupts, reducing host processor involvement.

  • Hardware-selectable CAN and LIN operation through the connected port accessory.
  • CAN physical-layer options include low-speed/fault-tolerant, high-speed and flexible data rate.
  • Two- and six-port variants support different interface channel requirements.
  • NI-XNET operation supports frame- and signal-based CAN applications.
  • DMA-based transfers move CAN frames and signals without CPU interrupts.
Verified specifications

Technical data

Verified product specifications.

CAN Physical LayerLow-Speed/Fault Tolerant, High-Speed, Flexible Data Rate
LIN Physical LayerLIN
Bus ConnectionPXI Express
Operating Temperature Range0 °C to 55 °C
Maximum Baud Rate8 MB/s
Conformal CoatedNo
EnclosedYes
Active Connector Slot Location1
NI part numbers784122-01, 784121-01
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

NI

Manufacturer

PXI Express

Bus Connection

PXIe-8510

This product

Platform shown as listed by NI. Confirm controller, chassis and software fit for your system with NI before integration.
