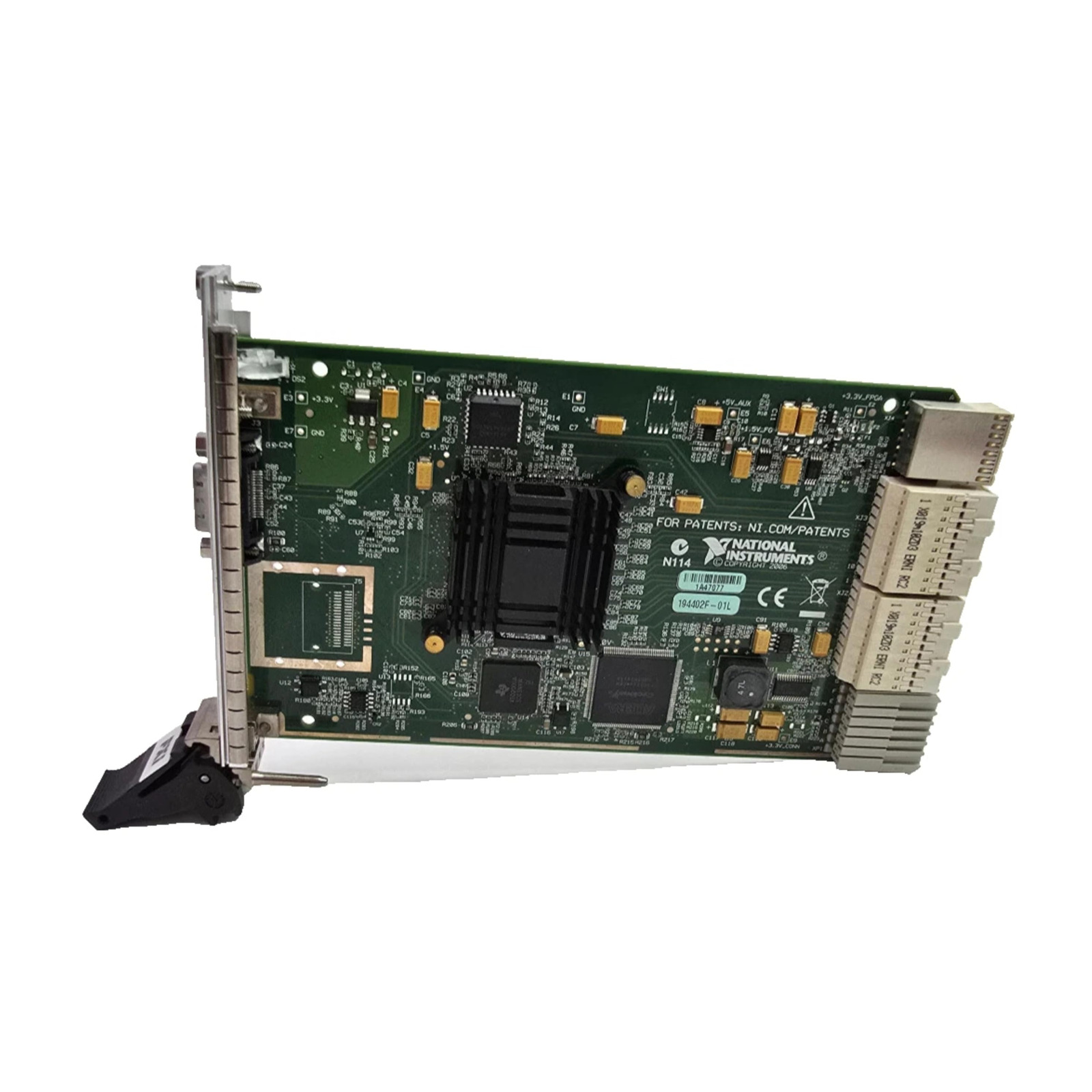

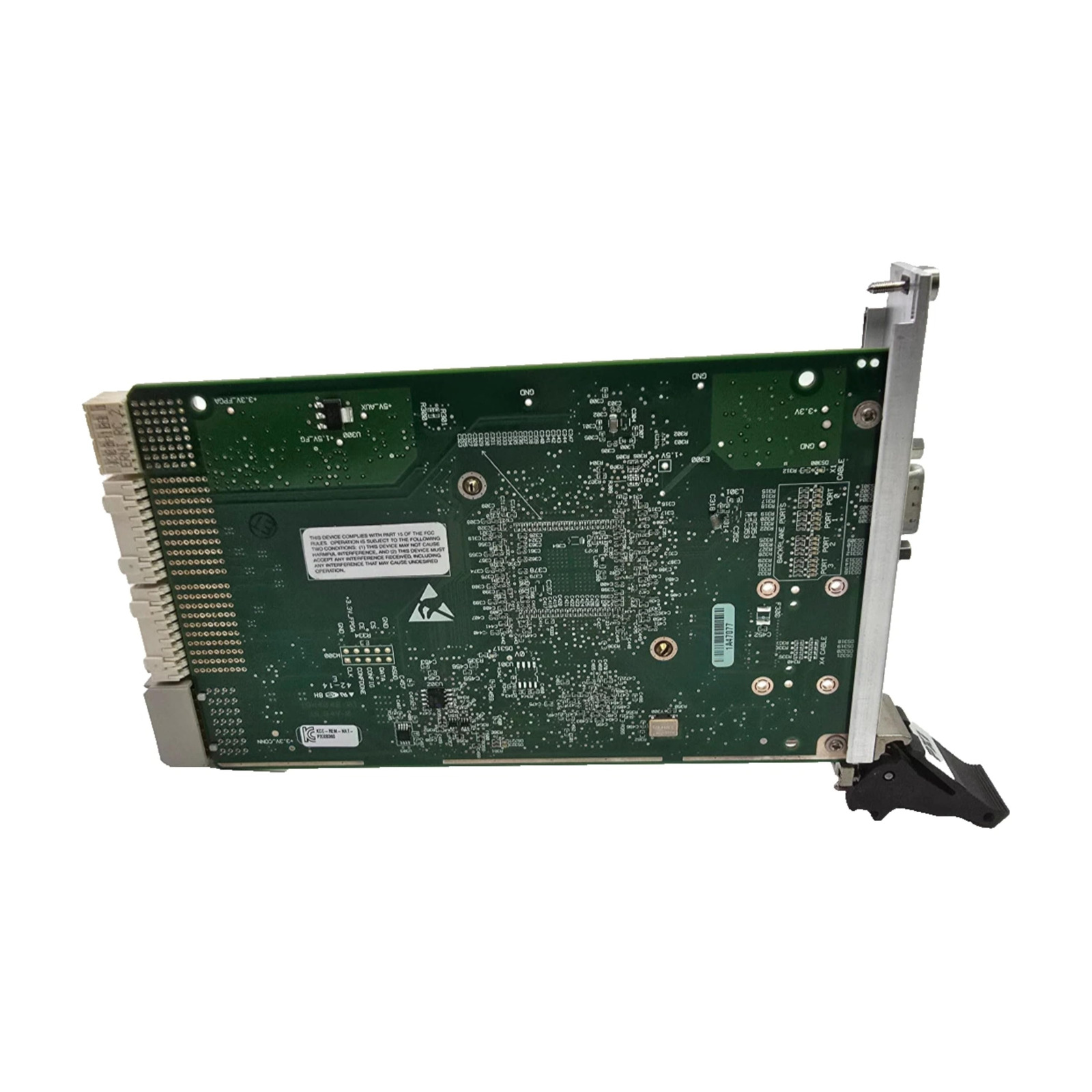

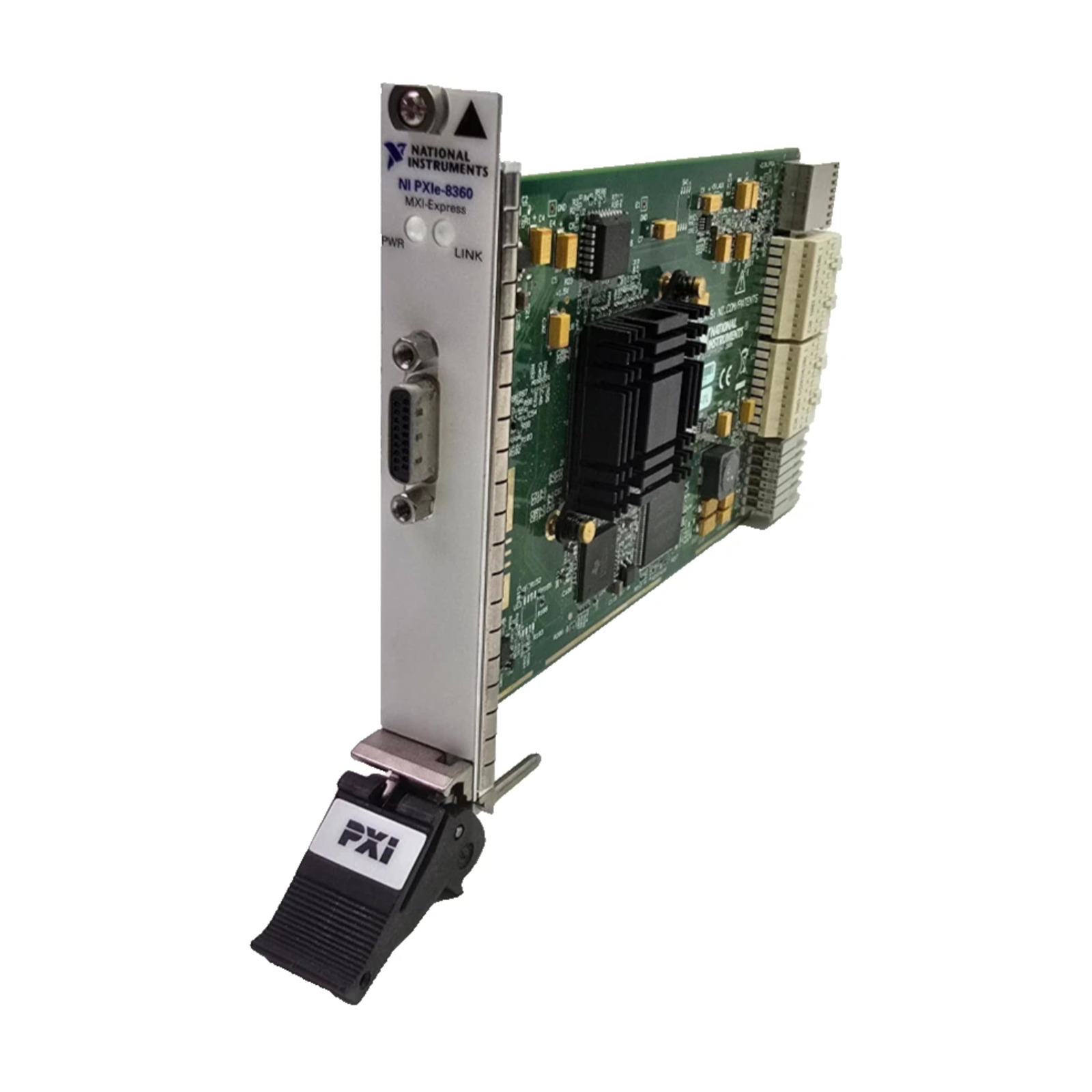

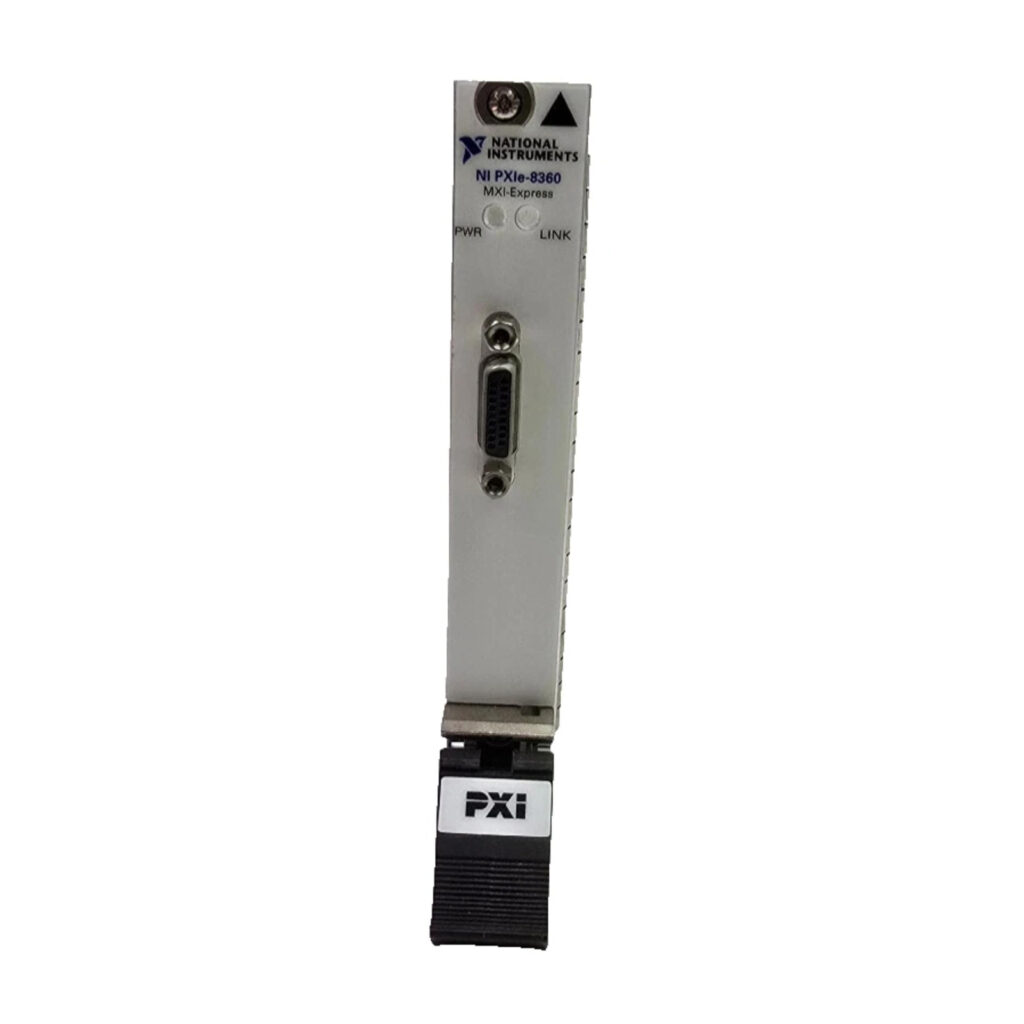

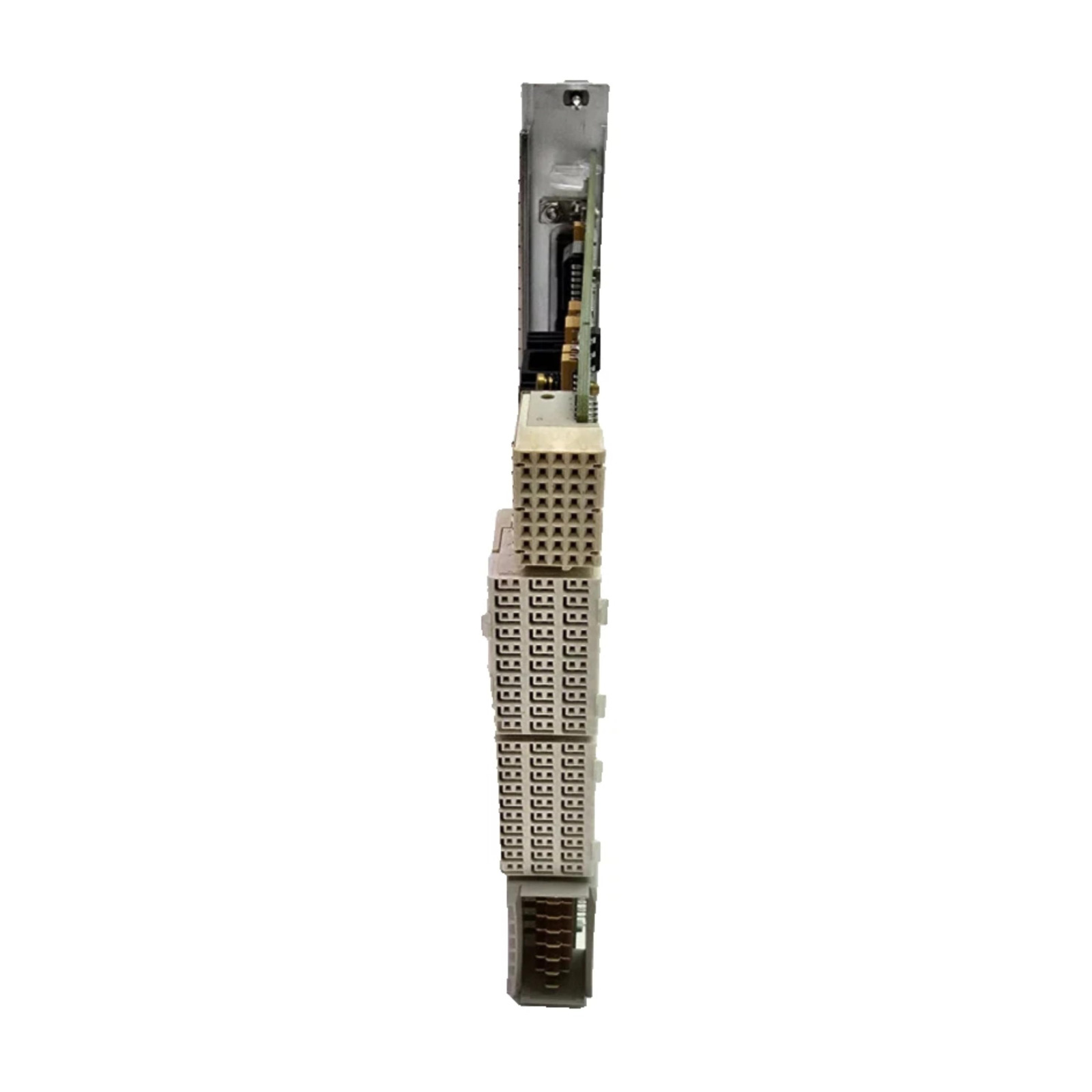

National Instruments PXIE-8360 product image 1
National Instruments PXIE-8360 product image 1 additional viewNational Instruments PXIE-8360 product image 1 additional viewNational Instruments PXIE-8360 product image 1 additional viewNational Instruments PXIE-8360 product image 1 additional view
5 images: additional views below.Click to enlarge
National Instruments · PXI Express

PXIE-8360

The NI PXIe-8360 is a chassis-side MXI-Express x1 interface for remote PC control of a PXI Express system. It installs in the chassis controller slot and connects to a supported host interface through a copper MXI-Express cable.

ManufacturerNational Instruments
ModelPXIE-8360
Part Number779700-01
Product TypePXI remote control module
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXIE-8360

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
PlatformPXI Express
LinkMXI-Express x1 over copper
InstallationChassis controller slot
MXI ports1
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The PXIe-8360 provides the chassis end of an MXI-Express x1 connection, allowing a host computer to control a PXI Express system. NI documents configurations using the PCIe-8362 host interface and a copper MXI-Express x1 cable.

The PXIe-8360 and PXI-8360 are distinct modules. NI's installation guide assigns the PXIe-8360 to a PXI Express controller slot, while the PXI-8360 uses a conventional PXI controller slot.

  • Chassis-side interface for PC-based control through MXI-Express x1.
  • Single copper MXI connection with a theoretical maximum bandwidth of 250 MB/s.
  • Installs in the PXI Express controller slot rather than a peripheral or hybrid slot.
Verified specifications

Technical data

Verified product specifications.

Manufacturer part number779700-01
Bus connectionPXI Express controller
MXI communication levelMXI-Express x1
Theoretical maximum MXI bandwidth250 MB/s
Supported cable typeCopper
MXI port count1
Daisy-chain supportNo
Operating temperature0 to 55 °C
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

MXI-Express x1

Host-to-chassis connection

PXIe-8360

PXI Express chassis controller-slot interface

Documented host interface

NI PCIe-8362 in the desktop PC

Use the PXI Express controller slot; do not substitute the similarly named PXI-8360.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

NI PXIe-8360 Product PageProduct Page · ni.com
Open →
MXI-Express x1 Series User ManualUser Manual · docs-be.ni.com
Open →
Set Up Your MXI-Express x1 SystemInstallation Guide · download.ni.com
Open →
MXI Controllers for PXI System ExpansionData Sheet · ni.com
Open →
PXIe-8360 Dimensional Drawings and CAD ModelsTechnical resource
Open →
PXIe-8360 Firmware and Additional DriversTechnical resource
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

PXI Platform

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Is the PXIe-8360 the same as the PXI-8360?

No. The PXIe-8360 installs in a PXI Express controller slot. The PXI-8360 is intended for a conventional PXI controller slot.

What does the 250 MB/s bandwidth figure mean?

NI specifies 250 MB/s as the theoretical maximum MXI bandwidth, not a sustained application transfer rate.

Which host connection does NI document for this module?

NI documents a PCIe-8362 host interface connected to the PXIe-8360 through an MXI-Express x1 copper cable, with 1 m, 3 m, and 7 m cable options.
