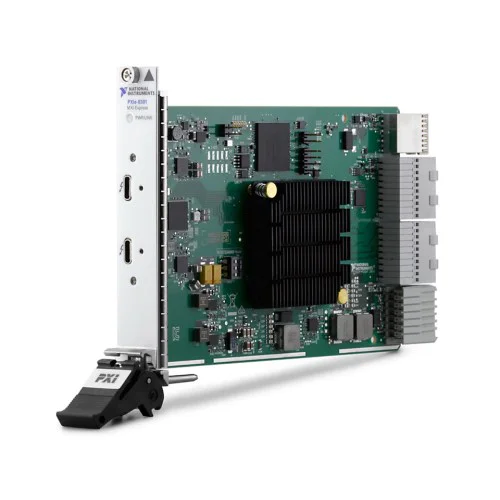

National Instruments PXIe-8301 PXI remote control module

1 image: Click to enlarge

National Instruments · PXI Express

PXIe-8301

Name: PXIe-8301
Brand: National Instruments

The NI PXIe-8301 enables a Thunderbolt 3-equipped laptop to control a PXI Express chassis. Its PCI Express Gen 3 x4 link supports up to 2.3 GB/s sustained data throughput.

ManufacturerNational Instruments

ModelPXIe-8301

Part Number785679-01

Product TypePXI remote control module

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXIe-8301

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Host connectionThunderbolt 3 over USB Type-C

Sustained throughputUp to 2.3 GB/s

Chassis slotOne PXI Express system slot

PortsTwo Thunderbolt 3 ports

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

Installed in the chassis controller slot, the PXIe-8301 extends PCI Express communication to an external Thunderbolt host rather than providing an embedded computer.

The second port accommodates peripheral devices such as displays or external storage. NI does not support using it to connect another PXIe chassis.

PCI Express Gen 3 x4 connection for external chassis control.
Copper Thunderbolt cabling between host and chassis.
Either Thunderbolt port can connect to the host; the remaining port serves peripherals.
Front-panel tri-color PWR/LINK indicator reports power and link status.

Verified specifications

Technical data

Verified product specifications.

Bus connection	PXI Express controller
MXI communication level	Thunderbolt 3.0
PCI Express link	Gen 3 x4
Maximum sustained data throughput	2.3 GB/s
Thunderbolt ports	2
Supported cable type	Copper
Multiple PXIe chassis daisy chaining	Not supported by NI
Slot requirement	One PXI Express system slot
Typical weight	0.16 kg
Operating ambient temperature with passive cable	0 to 55 °C
Operating ambient temperature with active cable	10 to 35 °C

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

PXI Express

Chassis platform

Thunderbolt 3

External host interface

PXIe-8301

System-slot remote control module

Use a PXI Express chassis, verify host Thunderbolt compatibility, and do not use the secondary port for another PXIe chassis.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

NI PXIe-8301 Product PageProduct Page · ni.com

Open →

PXIe-8301 User Manual and SpecificationsUser Manual And Specifications · download.ni.com

Open →

Secondary Thunderbolt Port Uses and LimitationsTechnical resource

Open →

NI PXIe Thunderbolt 4 and 5 CompatibilityTechnical resource

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Can the PXIe-8301 connect to an ordinary USB-C host port?

No. The USB Type-C connector must provide Thunderbolt connectivity; an ordinary USB-only port is insufficient.

Can the second port connect another PXIe chassis?

No. NI supports that port for peripherals, not multiple PXIe chassis. Either port can serve as the host connection.

Does the PXIe-8301 work in a conventional PXI chassis?

No. It requires a PXI Express chassis and is not compatible with conventional PXI chassis.

Can it be used with Thunderbolt 4 or Thunderbolt 5 hosts?

NI reports Thunderbolt 4 support except for systems using Maple Ridge-based internal controllers. NI identifies Thunderbolt 5 connections as incompatible with these PXIe Thunderbolt devices; verify the host controller before selecting a computer.
