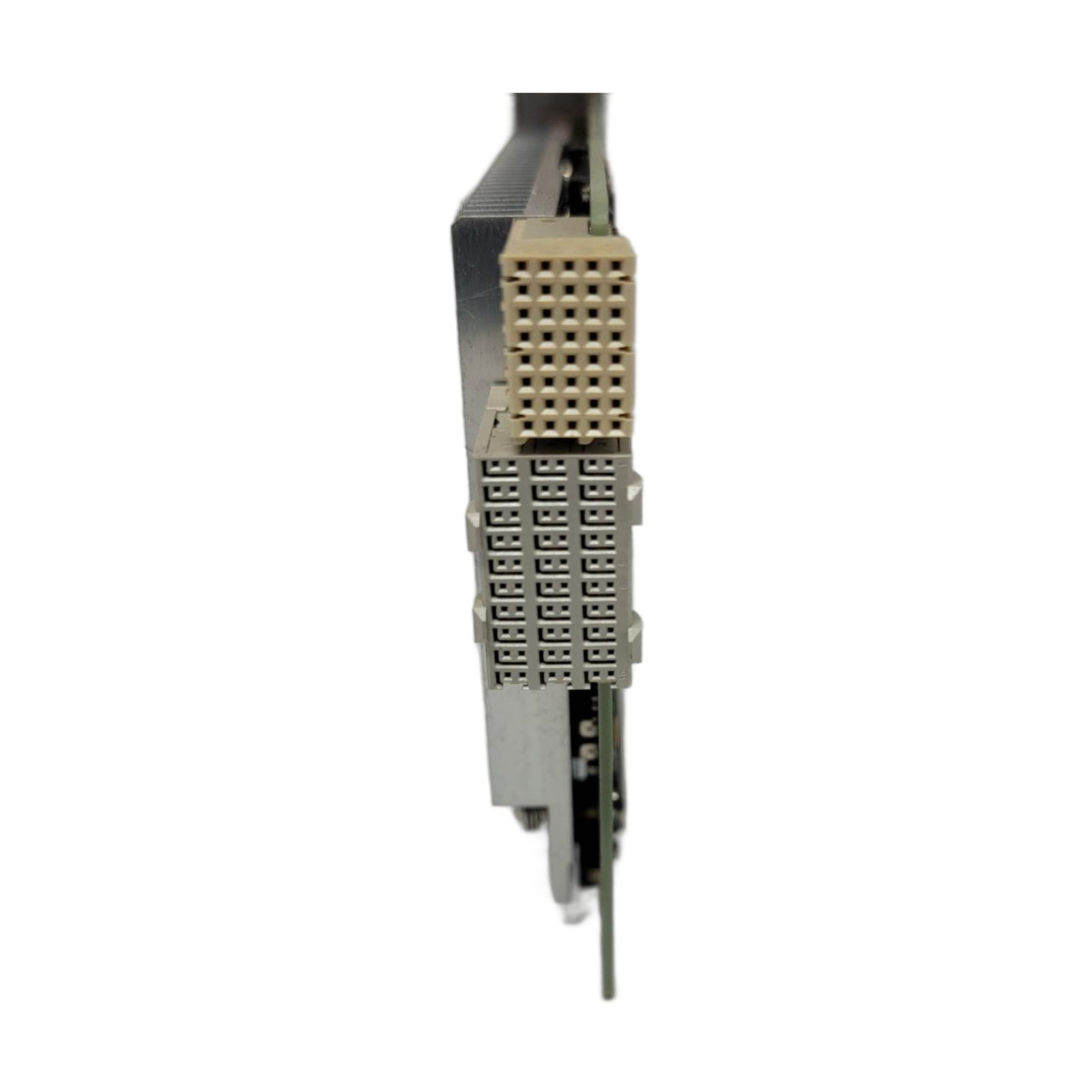

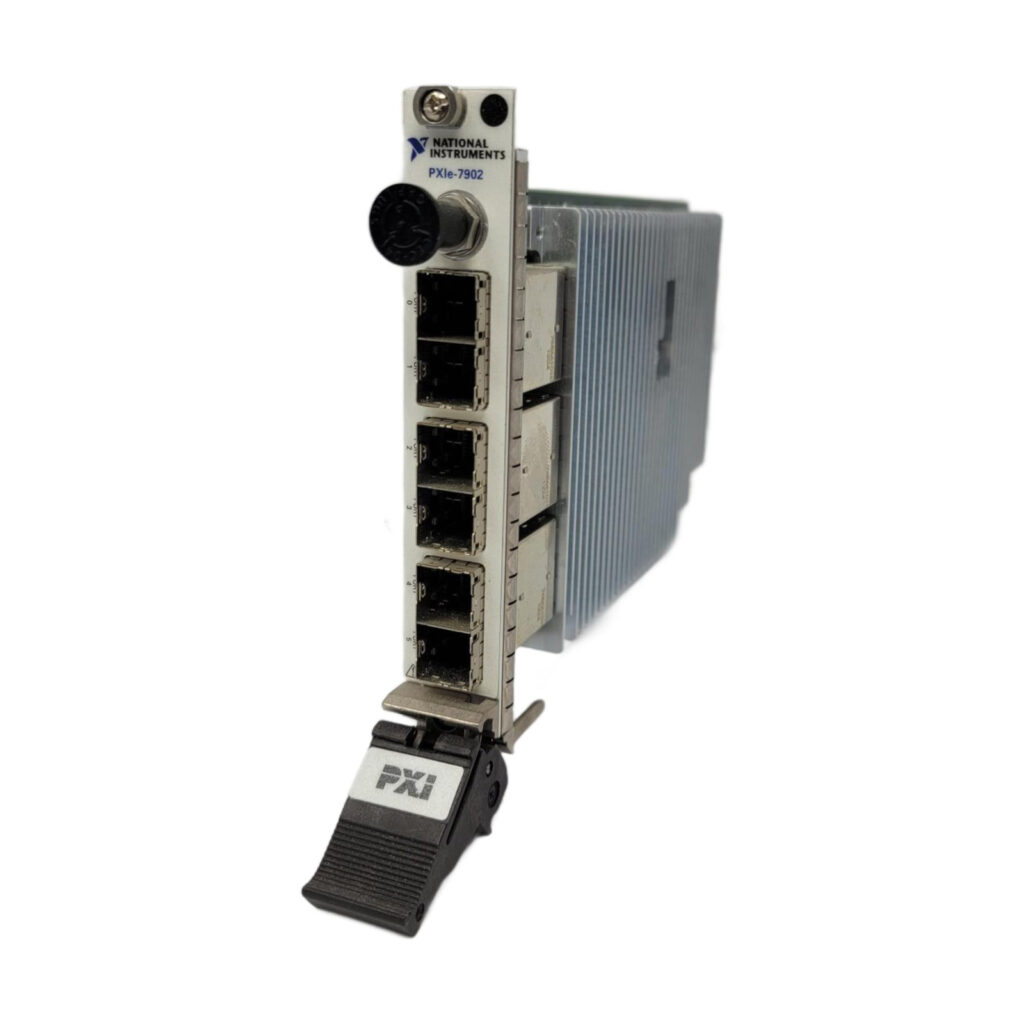

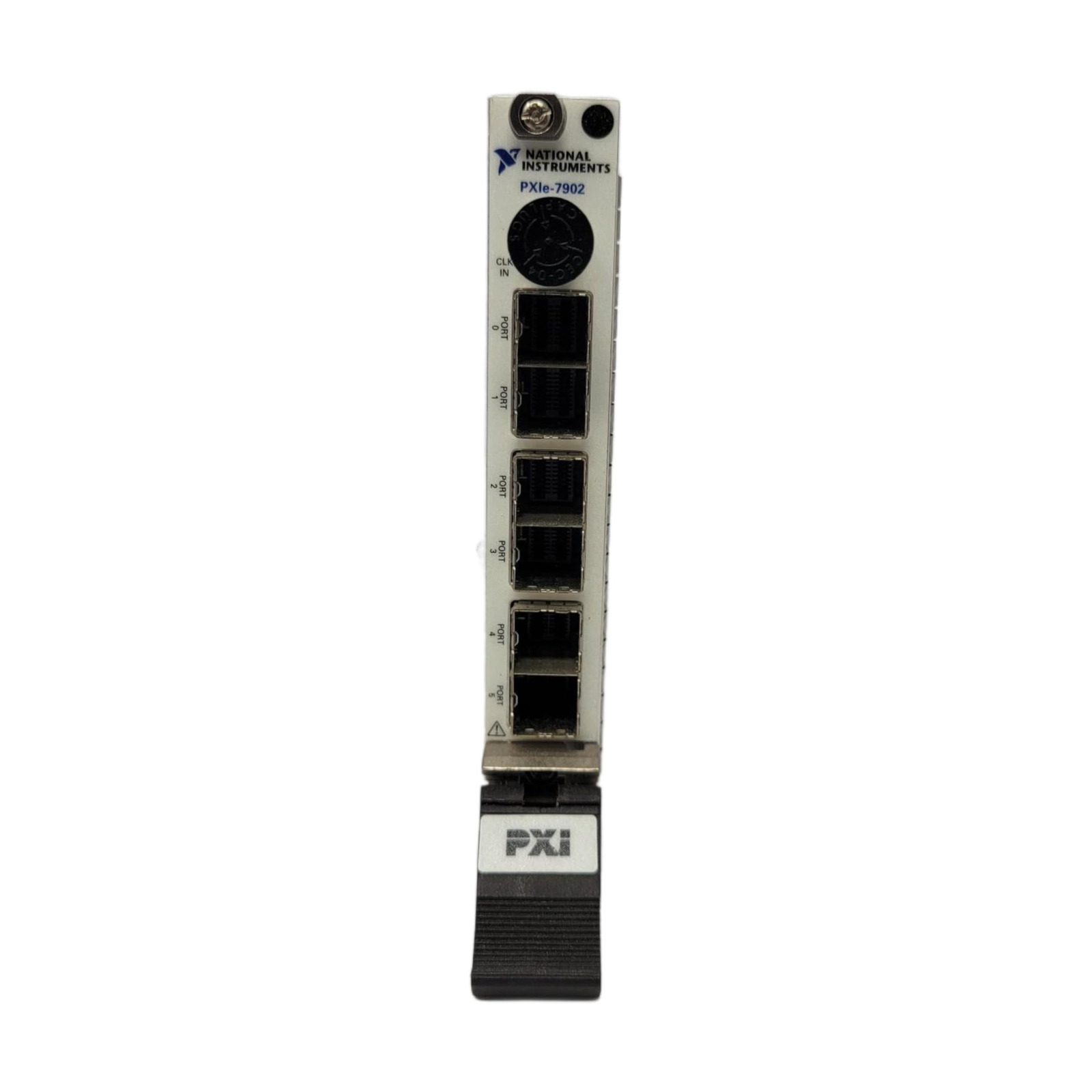

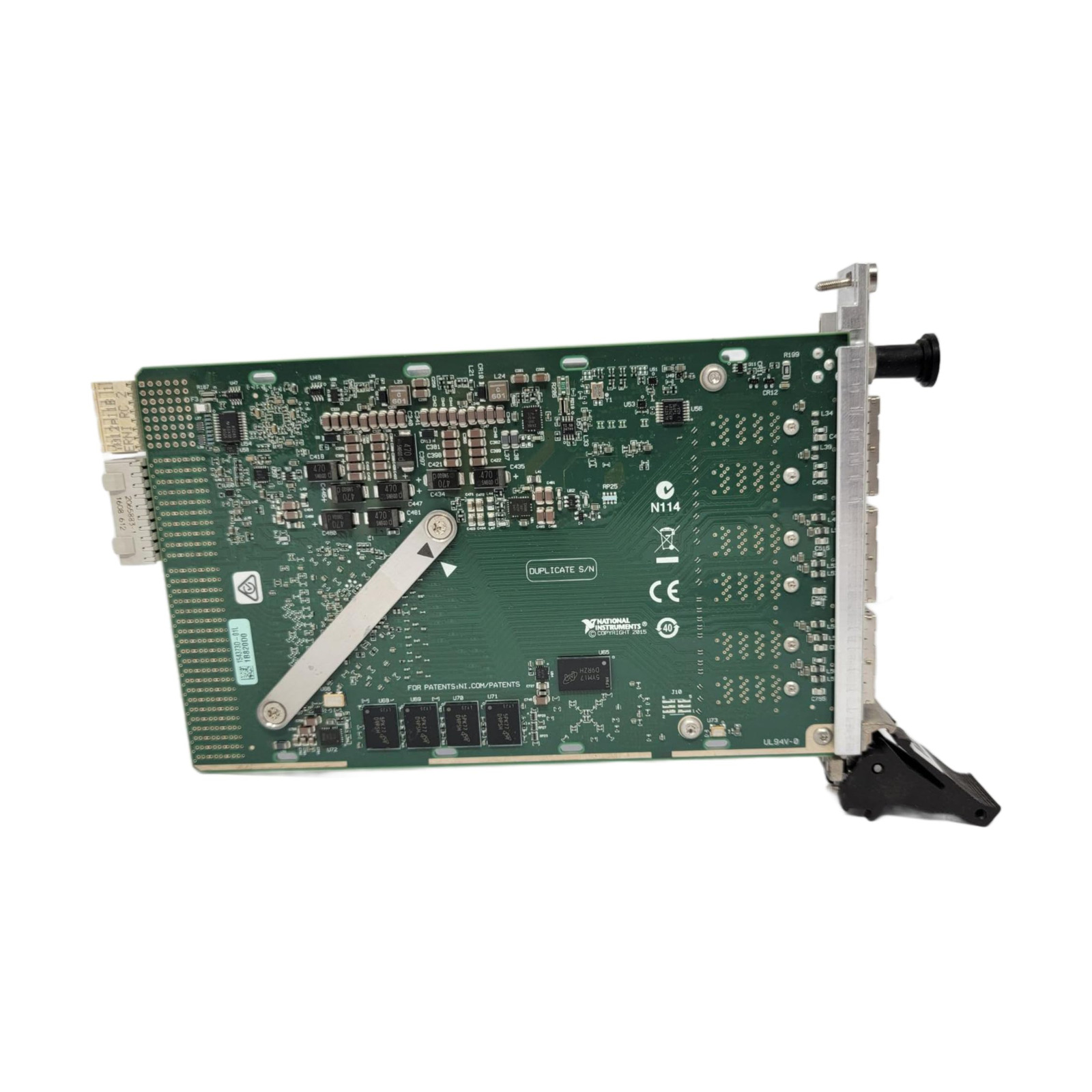

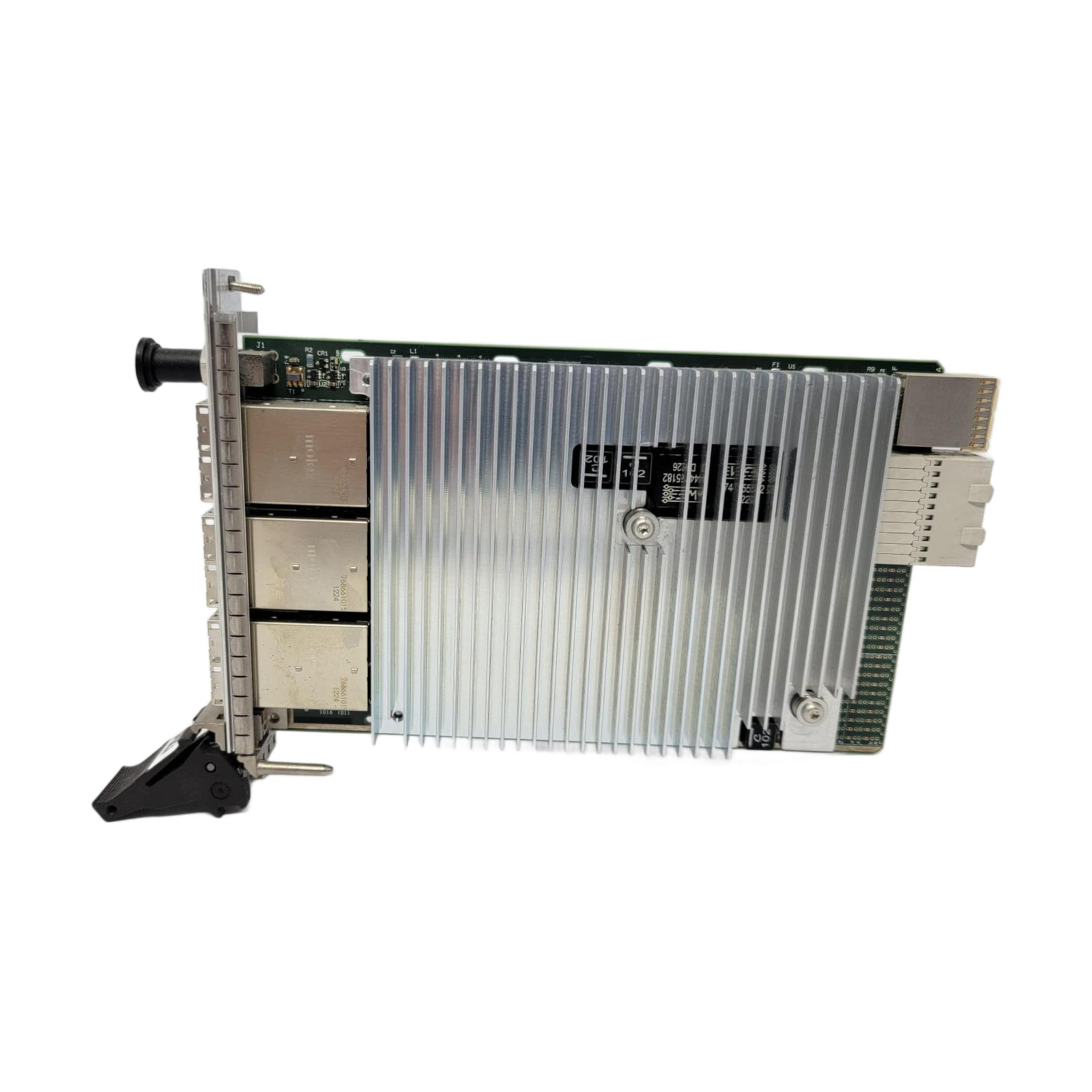

National Instruments PXIE-7902 product image 1
National Instruments PXIE-7902 product image 1 additional viewNational Instruments PXIE-7902 product image 1 additional viewNational Instruments PXIE-7902 product image 1 additional viewNational Instruments PXIE-7902 product image 1 additional view
5 images: additional views below.Click to enlarge
NI (National Instruments) · PXI

PXIe-7902

The NI PXIe-7902, part number 784232-01, is a PXI Express high-speed serial instrument with 24 bidirectional digital channels and a maximum data rate of 12.5 Gbits/s.

ManufacturerNI (National Instruments)
ModelPXIe-7902
Part Number784232-01
Product TypePXIe, 12.5 Gbps, 24-Channel PXI High-Speed Serial Instrument
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXIe-7902

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Bidirectional Digital Channels24
Maximum Data Rate12.5 Gbits/s
Dynamic RAM (DRAM)2 GB
PXI Backplane LinkPCI-Express Gen2 x 8
FPGAVirtex-7 485T
Operating Temperature Range0 °C to 55 °C
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The PXIe-7902 combines 24 serial channels with a reconfigurable Virtex-7 485T FPGA. Its onboard memory includes 2 GB of dynamic RAM and 37.1 Mbit of block RAM, and the instrument supports peer-to-peer streaming.

The module connects to the PXI Express backplane through a PCI Express Gen2 x8 link. Front-panel connection types include SMA and Mini-SAS HD, with one external clock input and a maximum clock rate of 300 MHz.

  • 24 bidirectional digital channels and 24 serial channels.
  • Maximum data rate of 12.5 Gbits/s.
  • Virtex-7 485T FPGA with LabVIEW FPGA Module programmability.
  • 2 GB of dynamic RAM and 37.1 Mbit of block RAM.
  • Reconfigurable design with peer-to-peer streaming support.
  • SMA and Mini-SAS HD front connections, plus one external clock input.
Verified specifications

Technical data

Verified product specifications.

Number of Bidirectional Digital Channels24
Maximum Data Rate12.5 Gbits/s
Dynamic RAM (DRAM)2 GB
PXI Backplane LinkPCI-Express Gen2 x 8
FPGAVirtex-7 485T
Operating Temperature Range0 °C to 55 °C
Front Connection TypeSMA, Mini-SAS HD
Isolation TypeNone
Number of Serial Channels24
Supported Hardware PlatformPXI
ReconfigurableYes
Supports Peer To Peer StreamingYes
Bus ConnectionPXI Express
Maximum Clock Rate300 MHz
Module Width1
Number of External Clock Inputs1
Block RAM (BRAM)37.1 Mbit
DSP Slices2800
NI part numbers784232-01
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

NI

Manufacturer

PXI

Supported Hardware Platform

PXIe-7902

This product

Platform shown as listed by NI. Confirm controller, chassis and software fit for your system with NI before integration.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

Getting Started (NI)Getting Started · ni.com
Open →
Letter Of Volatility (NI)Letter Of Volatility · ni.com
Open →
Specifications (NI)Specifications · ni.com
Open →
Dimensional Drawings (NI)Dimensional Drawings · ni.com
Open →
Product Page (NI)Product Page · ni.com
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

Electronic Test and Instrumentation

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

What is the maximum data rate of the PXIe-7902?

The maximum data rate is 12.5 Gbits/s.

How many serial channels does the PXIe-7902 have?

The PXIe-7902 has 24 serial channels.

Which FPGA and memory are included?

The instrument includes a Virtex-7 485T FPGA, 2 GB of dynamic RAM and 37.1 Mbit of block RAM.

What front connection types does the PXIe-7902 use?

The front connection types are SMA and Mini-SAS HD.
