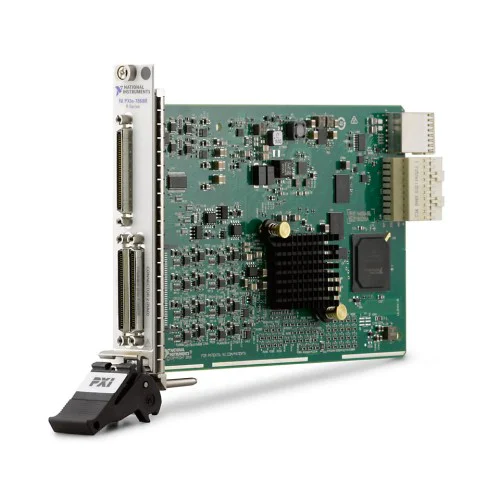

NI (National Instruments) PXIe-7868 PXIe, Kintex-7 325T FPGA, 18-Channel AO, 1 MS/s, PXI Multifunction Reconfigurable I/O Module
1 image: Click to enlarge
NI (National Instruments) · PXI

PXIe-7868

The NI PXIe-7868 is a PXI Express multifunction reconfigurable I/O module with a Kintex-7 325T FPGA, 6 analog inputs, 18 analog outputs and 48 bidirectional digital channels. Its maximum sample rate is 1 MS/s.

ManufacturerNI (National Instruments)
ModelPXIe-7868
Part Number785571-01
Product TypePXIe, Kintex-7 325T FPGA, 18-Channel AO, 1 MS/s, PXI Multifunction Reconfigurable I/O Module
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXIe-7868

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Maximum Sample Rate1 MS/s
Bus ConnectorPXI Express
Maximum Clock Rate80 MHz
Bidirectional Digital Channels48
Digital I/O Logic Levels3.3 V
Dynamic RAM (DRAM)512 MB
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The PXIe-7868, NI part number 785571-01, combines analog and digital I/O with a user-programmable Kintex-7 325T FPGA and 512 MB of DRAM. The FPGA supports onboard processing and control of I/O timing and synchronization.

The module provides 16-bit analog input and output resolution, selectable analog input ranges, and ±10 V analog outputs. Simultaneous sampling and peer-to-peer streaming are supported.

  • User-programmable Kintex-7 325T FPGA for onboard processing and I/O timing control.
  • 6 analog input channels with 16-bit resolution and selectable ±1 V, ±2 V, ±5 V and ±10 V ranges.
  • 18 analog output channels with 16-bit resolution and a ±10 V range.
  • 48 bidirectional digital channels with 3.3 V logic levels.
  • 512 MB of onboard DRAM and support for peer-to-peer streaming.
  • Simultaneous sampling with a maximum sample rate of 1 MS/s.
Verified specifications

Technical data

Verified product specifications.

Maximum Sample Rate1 MS/s
Bus ConnectorPXI Express
Maximum Clock Rate80 MHz
Number of Bidirectional Digital Channels48
Digital I/O Logic Levels3.3 V
Dynamic RAM (DRAM)512 MB
FPGAKintex-7 325T
Analog Input Voltage Range-1 V to 1 V -2 V to 2 V -5 V to 5 V -10 V to 10 V
Supports Peer To Peer StreamingYes
Number of Analog Input Channels6
Number of Analog Output Channels18
Supported Hardware PlatformPXI
ReconfigurableYes
Maximum Digital Update Rate12.5 ns
Maximum Analog Update Rate1 MS/s
Analog Output Voltage Range-10 V to 10 V
Simultaneous SamplingYes
Analog Input Absolute Accuracy2.28 mV
Conformal CoatedNo
Output Voltage Range0 V to 3.3 V
EnclosedYes
Front Connection TypeVHDCI
Number of External Clock Inputs1
Signaling TypeSingle-Ended
Maximum Number of Single-Ended Analog Input Channels6
Maximum Number of Differential Analog Input Channels6
Analog Input Resolution16 bits
Number of Voltage Output Channels6
Analog Output Resolution16 bits
Operating Temperature Range0 °C to 55 °C
Electrical Signal MeasuredVoltage
Supported Power InputBus Powered
NI part numbers785571-01
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

NI

Manufacturer

PXI

Supported Hardware Platform

PXIe-7868

This product

Platform shown as listed by NI. Confirm controller, chassis and software fit for your system with NI before integration.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

Letter Of Volatility (NI)Letter Of Volatility · ni.com
Open →
Getting Started (NI)Getting Started · ni.com
Open →
Specifications (NI)Specifications · ni.com
Open →
Dimensional Drawings (NI)Dimensional Drawings · ni.com
Open →
Product Page (NI)Product Page · ni.com
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

PXI Platform

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

How many analog input and output channels does the PXIe-7868 provide?

The retained product identity and channel specifications list 6 analog inputs and 18 analog outputs.

Which FPGA and onboard memory does the PXIe-7868 use?

It uses a Kintex-7 325T FPGA and includes 512 MB of DRAM.

What digital I/O does the module provide?

The PXIe-7868 provides 48 bidirectional digital channels with 3.3 V logic levels.

Does the PXIe-7868 support peer-to-peer streaming?

Yes. Peer-to-peer streaming is listed as supported in the supplied verified specifications.
