NI (National Instruments) · PXI

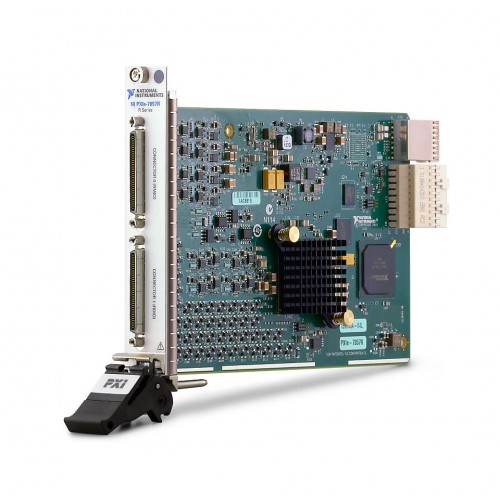

PXIe-7857

The NI PXIe-7857, part number 784146-01, is a PXI Express multifunction reconfigurable I/O module with a Kintex-7 160T FPGA and 512 MB DRAM. It provides 8 analog inputs, 8 analog outputs and 48 bidirectional digital channels, with maximum analog input and output rates of 1 MS/s.

ManufacturerNI (National Instruments)

ModelPXIe-7857

Part Number784146-01

Product TypePXIe, Kintex-7 160T FPGA, 1 MS/s, DRAM PXI Multifunction Reconfigurable I/O Module

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXIe-7857

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Maximum Sample Rate1 MS/s

Bus ConnectorPXI Express

Maximum Clock Rate80 MHz

Bidirectional Digital Channels48

Digital I/O Logic Levels1.2 V, 1.5 V, 1.8 V, 2.5 V, 3.3 V

Dynamic RAM (DRAM)512 MB

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The analog section provides 8 inputs and 8 outputs with 16-bit resolution. Input ranges are ±1 V, ±2 V, ±5 V and ±10 V; the analog output range is ±10 V. The module also supports simultaneous sampling and peer-to-peer streaming.

Kintex-7 160T FPGA and 512 MB onboard DRAM.
8 analog inputs and 8 analog outputs with 16-bit resolution and maximum rates of 1 MS/s.
Selectable analog input ranges of ±1 V, ±2 V, ±5 V and ±10 V, with ±10 V analog outputs.
48 bidirectional digital channels supporting 1.2 V, 1.5 V, 1.8 V, 2.5 V and 3.3 V logic levels.
Supports simultaneous sampling and peer-to-peer streaming.
PXI Express interface, VHDCI front connection and one external clock input.

Verified specifications

Technical data

Verified product specifications.

Maximum Sample Rate	1 MS/s
Bus Connector	PXI Express
Maximum Clock Rate	80 MHz
Number of Bidirectional Digital Channels	48
Digital I/O Logic Levels	1.2 V, 1.5 V, 1.8 V, 2.5 V, 3.3 V
Dynamic RAM (DRAM)	512 MB
FPGA	Kintex-7 160T
Analog Input Voltage Range	-1 V to 1 V -2 V to 2 V -5 V to 5 V -10 V to 10 V
Supports Peer To Peer Streaming	Yes
Number of Analog Input Channels	8
Number of Analog Output Channels	8
Supported Hardware Platform	PXI
Reconfigurable	Yes
Maximum Digital Update Rate	12.5 ns
Maximum Analog Update Rate	1 MS/s
Analog Output Voltage Range	-10 V to 10 V
Simultaneous Sampling	Yes
Analog Input Absolute Accuracy	2.28 mV
Conformal Coated	No
Output Voltage Range	0 V to 3.3 V
Enclosed	Yes
Front Connection Type	VHDCI
Number of External Clock Inputs	1
Signaling Type	Single-Ended
Maximum Number of Single-Ended Analog Input Channels	8
Maximum Number of Differential Analog Input Channels	8
Analog Input Resolution	16 bits
Number of Voltage Output Channels	8
Analog Output Resolution	16 bits
Operating Temperature Range	0 °C to 55 °C
Electrical Signal Measured	Voltage
Supported Power Input	Bus Powered
NI part numbers	784146-01

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

NI

Manufacturer

PXI

Supported Hardware Platform

PXIe-7857

This product

Platform shown as listed by NI. Confirm controller, chassis and software fit for your system with NI before integration.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

Getting Started (NI)Getting Started · ni.com

Open →

Specifications (NI)Specifications · ni.com

Open →

Dimensional Drawings (NI)Dimensional Drawings · ni.com

Open →

Product Page (NI)Product Page · ni.com

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

Data Acquisition and Control Systems

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

What is the NI part number for the PXIe-7857?

The listed NI part number is 784146-01.

How many analog and digital channels does it provide?

It provides 8 analog input channels, 8 analog output channels and 48 bidirectional digital channels. Both analog input and output resolution are 16 bits.

What analog voltage ranges are supported?

The analog input ranges are ±1 V, ±2 V, ±5 V and ±10 V. The analog output range is ±10 V.

Which FPGA and memory does the PXIe-7857 use?

The module uses a Kintex-7 160T FPGA and includes 512 MB DRAM.

Is the PXIe-7857 reconfigurable?

Yes. It is a reconfigurable I/O module with a user-programmable FPGA for onboard processing and I/O timing control.
