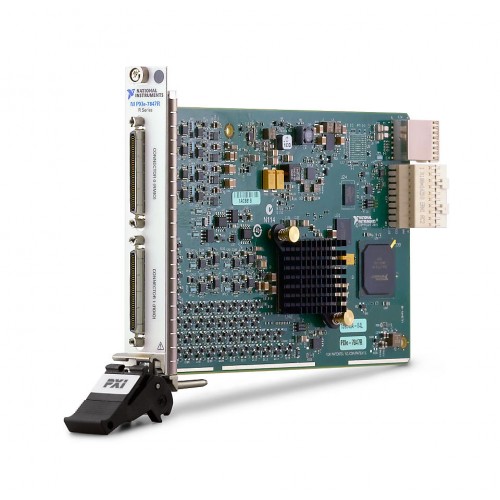

1 image: Click to enlarge

NI (National Instruments) · PXI

PXIe-7847

Name: PXIe-7847
Brand: NI (National Instruments)

The NI PXIe-7847 is an R Series reconfigurable PXI Express multifunction I/O module with a Kintex-7 160T FPGA and 512 MB DRAM. It provides 8 analog inputs, 8 analog outputs and 48 bidirectional digital channels.

ManufacturerNI (National Instruments)

ModelPXIe-7847

Part Number784144-01

Product TypePXIe, Kintex-7 160T FPGA, 500 kS/s, DRAM PXI Multifunction Reconfigurable I/O Module

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXIe-7847

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Maximum Sample Rate500 kS/s

Bus ConnectorPXI Express

Maximum Clock Rate80 MHz

Bidirectional Digital Channels48

Digital I/O Logic Levels1.2 V, 1.5 V, 1.8 V, 2.5 V, 3.3 V

Dynamic RAM (DRAM)512 MB

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The PXIe-7847 combines analog input, analog output and digital I/O with a user-programmable FPGA for onboard processing and direct control of I/O signals. The supplied NI part number 784144-01 identifies the PXIe-7847R R Series Multifunction module.

Each analog input channel has a dedicated A/D converter, supporting simultaneous sampling, independent timing and triggering, and multirate acquisition. The module can be customized using the LabVIEW FPGA Module and supports peer-to-peer streaming for direct data transfer to other PXI Express modules.

Kintex-7 160T user-programmable FPGA with 512 MB onboard DRAM.
Eight 16-bit analog inputs with simultaneous sampling and selectable ±1 V, ±2 V, ±5 V and ±10 V input ranges.
Eight 16-bit analog outputs with a ±10 V range and a maximum update rate of 1 MS/s per channel.
48 bidirectional digital channels with 1.2 V, 1.5 V, 1.8 V, 2.5 V and 3.3 V logic levels.
Dedicated A/D converters support independent channel timing, multirate sampling and individual channel triggering.
Peer-to-peer streaming support for direct data transfer to other PXI Express modules.

Verified specifications

Technical data

Verified product specifications.

Maximum Sample Rate	500 kS/s
Bus Connector	PXI Express
Maximum Clock Rate	80 MHz
Number of Bidirectional Digital Channels	48
Digital I/O Logic Levels	1.2 V, 1.5 V, 1.8 V, 2.5 V, 3.3 V
Dynamic RAM (DRAM)	512 MB
FPGA	Kintex-7 160T
Analog Input Voltage Range	-1 V to 1 V -2 V to 2 V -5 V to 5 V -10 V to 10 V
Supports Peer To Peer Streaming	Yes
Number of Analog Input Channels	8
Number of Analog Output Channels	8
Supported Hardware Platform	PXI
Reconfigurable	Yes
Maximum Digital Update Rate	12.5 ns
Maximum Analog Update Rate	1 MS/s
Analog Output Voltage Range	-10 V to 10 V
Simultaneous Sampling	Yes
Analog Input Absolute Accuracy	2.28 mV
Conformal Coated	No
Output Voltage Range	0 V to 3.3 V
Enclosed	Yes
Front Connection Type	VHDCI
Number of External Clock Inputs	1
Signaling Type	Single-Ended
Maximum Number of Single-Ended Analog Input Channels	8
Maximum Number of Differential Analog Input Channels	8
Analog Input Resolution	16 bits
Number of Voltage Output Channels	8
Analog Output Resolution	16 bits
Operating Temperature Range	0 °C to 55 °C
Electrical Signal Measured	Voltage
Supported Power Input	Bus Powered
NI part numbers	784144-01

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

NI

Manufacturer

PXI

Supported Hardware Platform

PXIe-7847

This product

Platform shown as listed by NI. Confirm controller, chassis and software fit for your system with NI before integration.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

Specifications (NI)Specifications · ni.com

Open →

Dimensional Drawings (NI)Dimensional Drawings · ni.com

Open →

Product Page (NI)Product Page · ni.com

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

FAQ

Product-specific questions

Product-specific answers based on available technical information.

What is the NI part number for the PXIe-7847?

The supplied verified part number is 784144-01, identified in the existing record as the PXIe-7847R R Series Multifunction module.

What FPGA and onboard memory does it have?

The module has a Kintex-7 160T FPGA and 512 MB of DRAM.

How many analog and digital channels are provided?

It provides 8 analog input channels, 8 analog output channels and 48 bidirectional digital channels. Both analog input and analog output resolution are 16 bits.

Does the PXIe-7847 support simultaneous sampling?

Yes. Each analog input channel has a dedicated A/D converter, supporting simultaneous sampling as well as independent timing and triggering.

Does it support peer-to-peer streaming?

Yes. The module supports peer-to-peer streaming for direct data transfer to other PXI Express modules. Confirm support for the intended receiving module and system configuration before integration.
