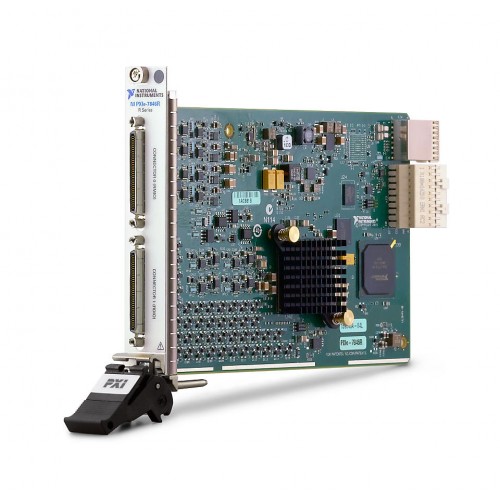

NI (National Instruments) PXIe-7846 PXIe, Kintex-7 160T FPGA, 500 kS/s, PXI Multifunction Reconfigurable I/O Module
1 image: Click to enlarge
NI (National Instruments) · PXI

PXIe-7846

The NI PXIe-7846, part number 784143-01, is a PXI Express multifunction reconfigurable I/O module with a Kintex-7 160T FPGA. It provides 8 analog inputs, 8 analog outputs and 48 bidirectional digital channels.

ManufacturerNI (National Instruments)
ModelPXIe-7846
Part Number784143-01
Product TypePXIe, Kintex-7 160T FPGA, 500 kS/s, PXI Multifunction Reconfigurable I/O Module
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXIe-7846

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Maximum Sample Rate500 kS/s
Bus ConnectorPXI Express
Maximum Clock Rate80 MHz
Bidirectional Digital Channels48
Digital I/O Logic Levels1.2 V, 1.5 V, 1.8 V, 2.5 V, 3.3 V
Dynamic RAM (DRAM)0 MB
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The PXIe-7846 combines analog and digital I/O with a user-programmable Kintex-7 160T FPGA for onboard processing and direct control of I/O signals. It is reconfigurable and supports peer-to-peer streaming.

Its analog section provides 8 inputs with selectable bipolar voltage ranges and 8 outputs with a ±10 V range. Both analog input and output resolution are 16 bits, and the module supports simultaneous sampling.

  • Kintex-7 160T FPGA for user-defined onboard processing and I/O control.
  • 8 analog inputs with selectable ±1 V, ±2 V, ±5 V and ±10 V ranges.
  • 8 analog outputs with a ±10 V range and a maximum analog update rate of 1 MS/s.
  • 48 bidirectional digital channels supporting 1.2 V, 1.5 V, 1.8 V, 2.5 V and 3.3 V logic levels.
  • 16-bit analog input and output resolution with simultaneous analog input sampling.
  • Supports peer-to-peer streaming.
Verified specifications

Technical data

Verified product specifications.

Maximum Sample Rate500 kS/s
Bus ConnectorPXI Express
Maximum Clock Rate80 MHz
Number of Bidirectional Digital Channels48
Digital I/O Logic Levels1.2 V, 1.5 V, 1.8 V, 2.5 V, 3.3 V
Dynamic RAM (DRAM)0 MB
FPGAKintex-7 160T
Analog Input Voltage Range-1 V to 1 V -2 V to 2 V -5 V to 5 V -10 V to 10 V
Supports Peer To Peer StreamingYes
Number of Analog Input Channels8
Number of Analog Output Channels8
Supported Hardware PlatformPXI
ReconfigurableYes
Maximum Digital Update Rate12.5 ns
Maximum Analog Update Rate1 MS/s
Analog Output Voltage Range-10 V to 10 V
Simultaneous SamplingYes
Analog Input Absolute Accuracy2.28 mV
Conformal CoatedNo
Output Voltage Range0 V to 3.3 V
EnclosedYes
Front Connection TypeVHDCI
Number of External Clock Inputs1
Signaling TypeSingle-Ended
Maximum Number of Single-Ended Analog Input Channels8
Maximum Number of Differential Analog Input Channels8
Analog Input Resolution16 bits
Number of Voltage Output Channels8
Analog Output Resolution16 bits
Operating Temperature Range0 °C to 55 °C
Electrical Signal MeasuredVoltage
Supported Power InputBus Powered
NI part numbers784143-01
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

NI

Manufacturer

PXI

Supported Hardware Platform

PXIe-7846

This product

Platform shown as listed by NI. Confirm controller, chassis and software fit for your system with NI before integration.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

Getting Started (NI)Getting Started · ni.com
Open →
Specifications (NI)Specifications · ni.com
Open →
Dimensional Drawings (NI)Dimensional Drawings · ni.com
Open →
Product Page (NI)Product Page · ni.com
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

FAQ

Product-specific questions

Product-specific answers based on available technical information.

What FPGA does the PXIe-7846 use?

The PXIe-7846 uses a user-programmable Kintex-7 160T FPGA.

How many analog and digital channels does it provide?

It provides 8 analog inputs, 8 analog outputs and 48 bidirectional digital channels. Analog input and output resolution are both 16 bits.

What are the maximum analog sampling and update rates?

The listed maximum sample rate is 500 kS/s, and the maximum analog output update rate is 1 MS/s.

Does the PXIe-7846 support peer-to-peer streaming?

Yes. The existing verified product data identifies peer-to-peer streaming support.
