NI (National Instruments) PXIe-7822 Kintex 7 325T FPGA, 128 DIO, 512 MB DRAM, PXI Digital Reconfigurable I/O Module

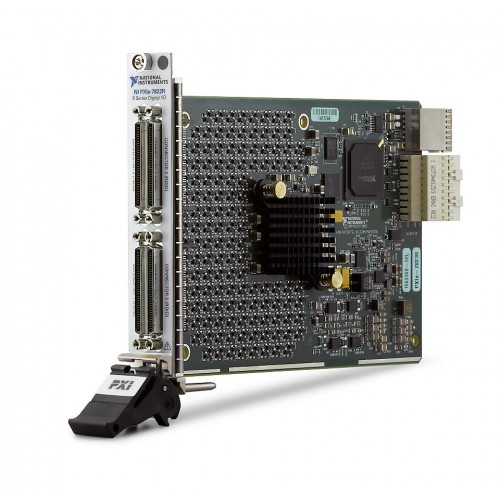

1 image: Click to enlarge
NI (National Instruments) · PXI

PXIe-7822

The NI PXIe-7822 is a PXI Express digital reconfigurable I/O module with a Kintex-7 325T FPGA, 128 bidirectional digital channels, and 512 MB of DRAM.

ManufacturerNI (National Instruments)
ModelPXIe-7822
Part Number783486-01
Product TypeKintex 7 325T FPGA, 128 DIO, 512 MB DRAM, PXI Digital Reconfigurable I/O Module
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXIe-7822

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Bus ConnectorPXI Express
Maximum Clock Rate80 MHz
Bidirectional Digital Channels128
Digital I/O Logic Levels1.2 V, 1.5 V, 1.8 V, 2.5 V, 3.3 V
Dynamic RAM (DRAM)512 MB
External Clock Inputs4
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The PXIe-7822 combines a user-programmable FPGA with bidirectional digital I/O for onboard processing and flexible hardware-timed operation. Its PXI Express interface places it within the NI PXI platform.

The module provides single-ended digital signaling through VHDCI front connections, selectable logic levels, and four external clock inputs. It supports peer-to-peer streaming and includes 512 MB of DRAM.

With LabVIEW FPGA, digital lines can be configured for input, output, counter/timer, PWM, encoder input, or specialized communication protocol functions.

  • Kintex-7 325T FPGA enables reconfigurable onboard operation.
  • 128 bidirectional digital channels support selectable 1.2 V, 1.5 V, 1.8 V, 2.5 V, and 3.3 V logic levels.
  • Maximum clock, acquisition, and generation rates of 80 MHz.
  • 512 MB of onboard DRAM.
  • Four external clock inputs support external timing connections.
  • Supports peer-to-peer streaming.
Verified specifications

Technical data

Verified product specifications.

Bus ConnectorPXI Express
Maximum Clock Rate80 MHz
Number of Bidirectional Digital Channels128
Digital I/O Logic Levels1.2 V, 1.5 V, 1.8 V, 2.5 V, 3.3 V
Dynamic RAM (DRAM)512 MB
Number of External Clock Inputs4
FPGAKintex-7 325T
Supports Peer To Peer StreamingYes
ReconfigurableYes
Bus ConnectionPXI Express
Front Connection TypeVHDCI
Signaling TypeSingle-Ended
Supported Hardware PlatformPXI
Digital I/O Termination52 Ohm
Output Voltage Range0 V to 3.3 V
Maximum Acquisition Rate80 MHz
Maximum Generation Rate80 MHz
Maximum Data Rate80 MHz
Module Width1
Onboard Memory512 MB
Supports Hardware CompareNo
NI part numbers783486-01
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

NI

Manufacturer

PXI

Supported Hardware Platform

PXIe-7822

This product

Platform shown as listed by NI. Confirm controller, chassis and software fit for your system with NI before integration.
