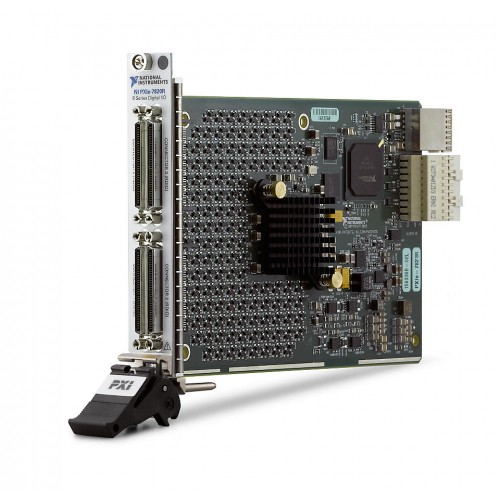

NI (National Instruments) PXIe-7820 Kintex 7 160T FPGA, 128 DIO, PXI Digital Reconfigurable I/O Module
1 image: Click to enlarge
NI (National Instruments) · PXI

PXIe-7820

The NI PXIe-7820 is a reconfigurable PXI Express digital I/O module with a Kintex-7 160T FPGA and 128 bidirectional digital channels.

ManufacturerNI (National Instruments)
ModelPXIe-7820
Part Number783484-01
Product TypeKintex 7 160T FPGA, 128 DIO, PXI Digital Reconfigurable I/O Module
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXIe-7820

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Bus ConnectorPXI Express
Maximum Clock Rate80 MHz
Bidirectional Digital Channels128
Digital I/O Logic Levels1.2 V, 1.5 V, 1.8 V, 2.5 V, 3.3 V
Dynamic RAM (DRAM)0 MB
External Clock Inputs4
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The PXIe-7820 combines a user-programmable FPGA with 128 bidirectional digital channels on a PXI Express module. Its front connections use VHDCI connectors and single-ended signaling, with supported digital logic levels from 1.2 V to 3.3 V.

With LabVIEW FPGA, digital lines can be configured for inputs, outputs, counter/timers, PWM, encoder inputs, or specialized communication protocols. Onboard FPGA processing supports custom decision making and hardware-timed execution.

The module supports maximum acquisition and generation rates of 80 MHz, four external clock inputs, and peer-to-peer streaming. Listed onboard memory and DRAM capacities are both 0 MB.

  • Kintex-7 160T FPGA for reconfigurable onboard processing.
  • 128 bidirectional digital channels with software-selectable logic levels.
  • Maximum acquisition and generation rates of 80 MHz.
  • Supports 1.2 V, 1.5 V, 1.8 V, 2.5 V, and 3.3 V digital I/O logic levels.
  • Four external clock inputs and peer-to-peer streaming support.
  • VHDCI front connections with single-ended digital signaling.
Verified specifications

Technical data

Verified product specifications.

Bus ConnectorPXI Express
Maximum Clock Rate80 MHz
Number of Bidirectional Digital Channels128
Digital I/O Logic Levels1.2 V, 1.5 V, 1.8 V, 2.5 V, 3.3 V
Dynamic RAM (DRAM)0 MB
Number of External Clock Inputs4
FPGAKintex-7 160T
Supports Peer To Peer StreamingYes
ReconfigurableYes
Bus ConnectionPXI Express
Front Connection TypeVHDCI
Signaling TypeSingle-Ended
Supported Hardware PlatformPXI
Digital I/O Termination50 Ohm
Output Voltage Range0 V to 3.3 V
Maximum Acquisition Rate80 MHz
Maximum Generation Rate80 MHz
Maximum Data Rate80 MHz
Module Width1
Onboard Memory0 MB
Supports Hardware CompareNo
NI part numbers783484-01
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

NI

Manufacturer

PXI

Supported Hardware Platform

PXIe-7820

This product

Platform shown as listed by NI. Confirm controller, chassis and software fit for your system with NI before integration.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

Getting Started (NI)Getting Started · ni.com
Open →
Specifications (NI)Specifications · ni.com
Open →
Letter Of Volatility (NI)Letter Of Volatility · ni.com
Open →
Dimensional Drawings (NI)Dimensional Drawings · ni.com
Open →
Product Page (NI)Product Page · ni.com
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

FAQ

Product-specific questions

Product-specific answers based on available technical information.

What FPGA does the PXIe-7820 use?

The PXIe-7820 uses a Kintex-7 160T FPGA for reconfigurable onboard processing.

How many digital channels does it provide?

The module provides 128 bidirectional digital channels.

What are the maximum acquisition and generation rates?

The maximum acquisition rate and maximum generation rate are both 80 MHz.

Which digital I/O logic levels are supported?

Supported logic levels are 1.2 V, 1.5 V, 1.8 V, 2.5 V, and 3.3 V.

Does the PXIe-7820 include onboard DRAM?

No. The previously verified specifications list DRAM and onboard memory capacities as 0 MB.

What bus interface and front connector type does it use?

It uses a PXI Express bus interface and VHDCI front connections.
